Tap holder for Weldon chucks 16 / 4,5 mm
Product number:
09-GBE-16/4,5
Customs tariff number
8466 1020
European Article Number
4049794674888
Weight
0,1 kg
Stock:
0
Related links:
Request Item
Product information "Tap holder for Weldon chucks 16 / 4,5 mm"
Tap holder for Weldon chucks
- to use tapping collets with internal square
in weldon chucks
- with quick change mechanism

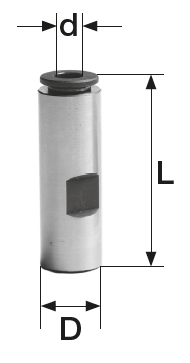

D: 16 mm
d: 4,5 mm
square: 3,4 mm
| Bore Ø mm: | 4,5 |
|---|---|
| Type: | Tap holders for Weldon chucks |
| Ø : | 16 mm |
Technical Data
| D mm |
d mm |
Vierkant / Square mm |
L mm |
| 16 | 3,5 | 2,7 | 56 |
| 16 | 4,0 | 3,0 | 56 |
| 16 | 4,5 | 3,4 | 56 |
| 16 | 6,0 | 4,9 | 56 |
| 20 | 4,5 | 3,4 | 58 |
| 20 | 6,0 | 4,9 | 58 |
| 20 | 7,0 | 5,5 | 58 |
| 20 | 8,0 | 6,2 | 58 |
| 20 | 9,0 | 7,0 | 58 |
| 20 | 10,0 | 8,0 | 58 |
| 25 | 4,5 | 3,4 | 66 |
| 25 | 6,0 | 4,9 | 66 |
| 25 | 7,0 | 5,5 | 66 |
| 25 | 8,0 | 6,2 | 66 |
| 25 | 9,0 | 7,0 | 66 |
| 25 | 10,0 | 8,0 | 66 |
| 25 | 11,0 | 9,0 | 66 |
| 25 | 12,0 | 9,0 | 66 |
| 32 | 10,0 | 8,0 | 70 |
| 32 | 11,0 | 9,0 | 70 |
| 32 | 12,0 | 9,0 | 70 |
| 32 | 14,0 | 11,0 | 70 |
| 32 | 16,0 | 12,0 | 70 |
| 32 | 18,0 | 14,5 | 70 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
