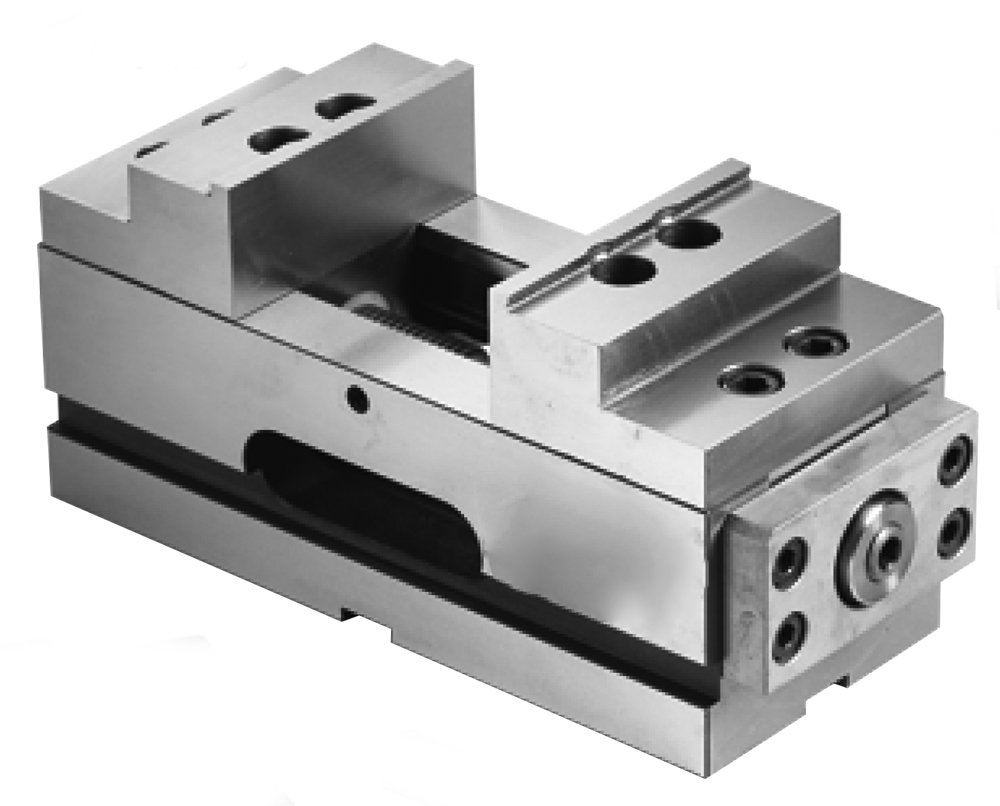

Self-centering vice type ZSM2-100

Preview: Self-centering vice type ZSM2-100 Preview: Drawing 1 Self-centering vice type ZSM2-100 Preview: Drawing 2 Self-centering vice type ZSM2-100
Self-centering vice type ZSM2-100
Drawing 1 Self-centering vice type ZSM2-100
Drawing 2 Self-centering vice type ZSM2-100

€883.80 *
€1,051.72 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-ZSM2-100
  • Customs tariff number: 8466 2098
  • European article number: 4049794666999
  • Weight: 16,95 kg
  • In stock: 1
Description Technical data Product Safety Information Evaluations 0
Description
Self-centering vice ZSM2-100 - for 4/5-axes machining - repeatability: 0,01 mm - with... more
Close menu
Product information "Self-centering vice type ZSM2-100"

Self-centering vice ZSM2-100

- for 4/5-axes machining
- repeatability: 0,01 mm
- with pull-down mechanism
- incl. 4 clamping brackets and key

Type: Self-centering vices
Jaw width: 100 mm
Type: mechanically
Make: Zentra
Related links to "Self-centering vice type ZSM2-100"
Technical data
W mm A mm J mm C1 Spannweite / C1 Clamping range C2... more
Zurück
W
mm		 A
mm		 J
mm		 C1 Spannweite /
C1 Clamping range		 C2 Spannweite /
C2 Clamping range		 C3 Spannweite /
C3 Clamping range		 F
mm		 H
mm
100 240 120 90 70 - 160 134 - 222 35 80

B
mm		 K
mm		 N
mm		 g
mm		 L
mm		 Spannkraft /
Clamping force daN		 Anzugsmoment /
Torque Nm		 kg
40 20 22 18 260 400 25 18

Inkl. 4 Spannpratzen und Schlüssel /
Incl. 4 clamping brackets and key

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
