3-jaw scroll chuck Bison type 3545-630-15

Preview: Dreibacken-Drehfutter Typ 3545-630-15 Preview: Zeichnung Dreibacken-Drehfutter Typ 3545-630-15
Dreibacken-Drehfutter Typ 3545-630-15
Zeichnung Dreibacken-Drehfutter Typ 3545-630-15

€10,415.25 *
€12,394.15 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • Order number: 353545540200
  • Customs tariff number: 84662091
  • European article number:
  • Weight: 271 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
3-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3545  Ø... more
Close menu
Product information "3-jaw scroll chuck Bison type 3545-630-15"

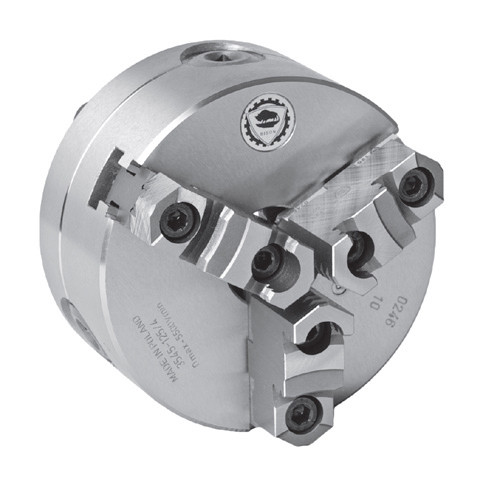

3-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3545 Ø 630 mm, taper 15
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- 2-piece jaws
- incl. 1 set of hard top jaws, 1 set of hard master jaws
  and 1 wrench

Related links to "3-jaw scroll chuck Bison type 3545-630-15"

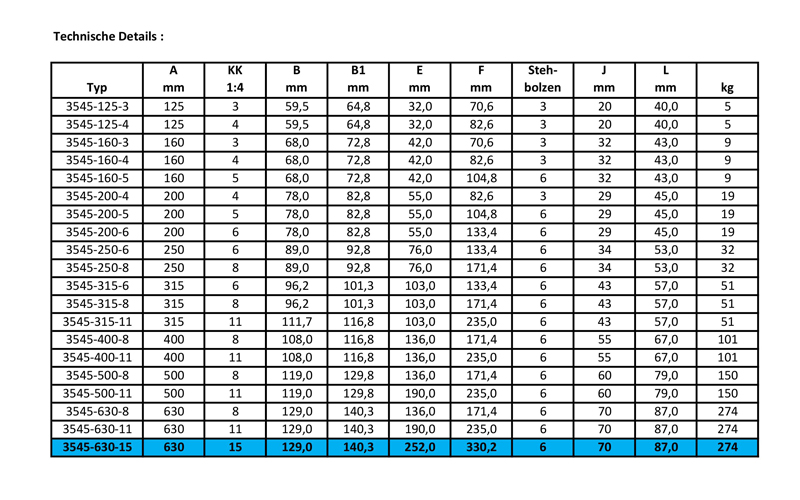

Technical data
more
Zurück

353545540200-3545-630-15
