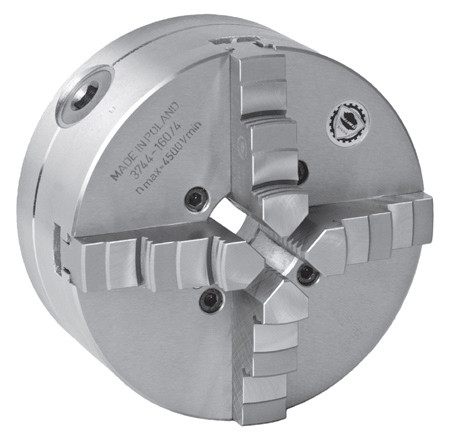

4-jaw scroll chuck Bison type 3744-250-6

€1,362.75 *
€1,621.67 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 353744330300
  • 84662091
  • 32 kg
  • 0
4-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3744  Ø... more
Product information "4-jaw scroll chuck Bison type 3744-250-6"

4-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3744 Ø 250 mm, taper 6
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3744-250-6"

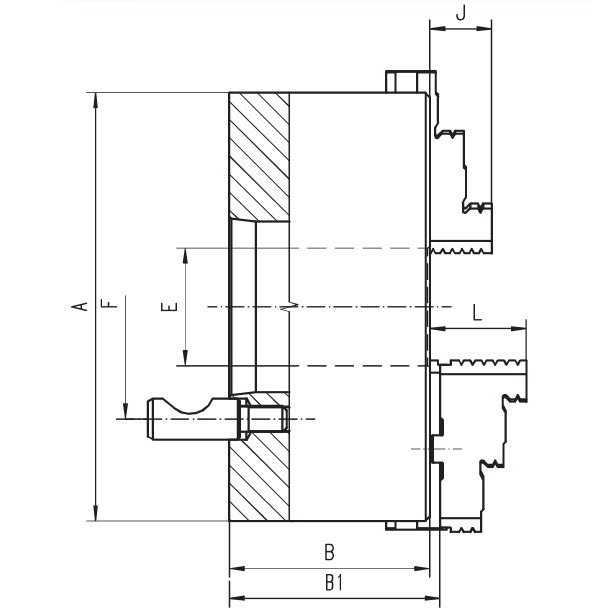

A KK 1:4 / ST 1:4 B B1 E F Stehbolzen / Stud bolts J L kg 160 4... more
A KK 1:4 /
ST 1:4
B B1 E F Stehbolzen /
Stud bolts
J L kg
160 4 68,0 72,8 42 82,6 3 32 43 9
160 5 68,0 72,8 42 104,8 6 32 43 9
200 5 78,0 82,8 55 104,8 6 29 45 19
200 6 78,0 82,8 55 133,4 6 29 45 19
250 6 89,0 92,8 76 133,4 6 34 53 32
250 8 89,0 92,8 76 171,4 6 34 53 32
315 6 96,2 101,3 103 133,4 6 43 57 51
315 8 96,2 101,3 103 171,4 6 43 57 51
400 8 108,0 116,8 136 171,4 6 55 67 101
400 11 108,0 116,8 136 235,0 6 55 67 101

Inkl. 1 Satz harter einteiliger Bohrbacken, 1 Satz harter einteiliger Drehbacken und 1 Schlüssel /
Incl. 1 set of hard outside-inside solid jaws, 1 set of hard outside solid jaws and 1 wrench

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
