Revolving tube centre pointed, MT 4

Preview: Revolving tube centre pointed, MT 4 Preview: Drawing Revolving tube centre pointed, MT 4
Revolving tube centre pointed, MT 4

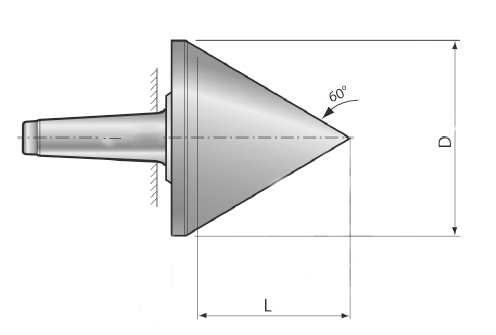

Drawing Revolving tube centre pointed, MT 4

€840.89 *
€1,000.66 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 03-ZKS-4
  • Customs tariff number: 8466 2091
  • European article number: 4049794682463
  • Weight: 6,6 kg
  • In stock: 1
Description Technical data Evaluations 0
Description
Revolving tube centre pointed MT 4 - hardened and ground - Ø 135 mm more
Close menu
Product information "Revolving tube centre pointed, MT 4"

Revolving tube centre pointed
MT 4

- hardened and ground
- Ø 135 mm

Related links to "Revolving tube centre pointed, MT 4"
Technical data
MK / MT D mm L mm Winkel / Angle Drehzahl / Speed max. Rundlaufgenauigkeit /... more
Zurück
MK /
MT		 D
mm		 L
mm		 Winkel /
Angle		 Drehzahl / Speed
max.		 Rundlaufgenauigkeit /
Run-out max. mm		 kg
2 135 110 60° 4500 0,008 4,4
3 135 110 60° 4500 0,008 5,5
4 135 110 60° 4000 0,008 6,6
5 158 135 60° 3600 0,008 11
6 158 135 60° 3600 0,008 19,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
