€119.09 *
€141.72 incl. VAT
Prices plus VAT plus shipping costs
Ready to ship today,
Delivery time appr. 1-3 workdays
- Order number: 06-589E-30,0
- Customs tariff number: 8466 1020
- European article number: 4049794003688
- Weight: 0,85 kg
- In stock: 2

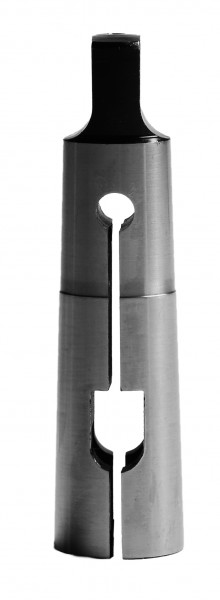

Clamping sleeve DIN 6328 for taps
- MT 5 - bore-ø 30,0 mm more
Product information "Clamping sleeve for taps MT 5 / Ø 30,0 mm"
Clamping sleeve DIN 6328 for taps
- MT 5
- bore-ø 30,0 mm
Type: | Clamping sleeves |
MT: | 5 |
Bore Ø mm: | 30 |
Related links to "Clamping sleeve for taps MT 5 / Ø 30,0 mm"
MK / MT
Außen-Ø / External-Ø mm
L mm
Bohrung / Bore mm
1
12,2
65,5
2,5 /... more
MK / MT |
Außen-Ø / External-Ø mm |
L mm |
Bohrung / Bore mm |
1 | 12,2 | 65,5 | 2,5 / 2,8 / 3,5 / 4,0 / 4,5 / 5,0 / 5,5 / 6,0 / 7,0 / 8,0 |
2 | 18 | 78,5 | 4,5 / 5,5 / 6,0 / 7,0 / 8,0 / 9,0 / 10,0 / 11,0 / 12,0 / 12,5 |
3 | 24 | 98 | 8,0 / 9,0 / 10,0 / 11,0 / 12,0 / 12,5 / 14,0 / 16,0 |
4 | 3,5 | 123 | 12,0 / 14,0 / 16,0 / 18,0 / 20,0 / 22,0 / 25,0 |
5 | 44,7 | 156 | 22,0 / 25,0 / 28,0 / 30,0 / 32,0 / 36,0 |
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
