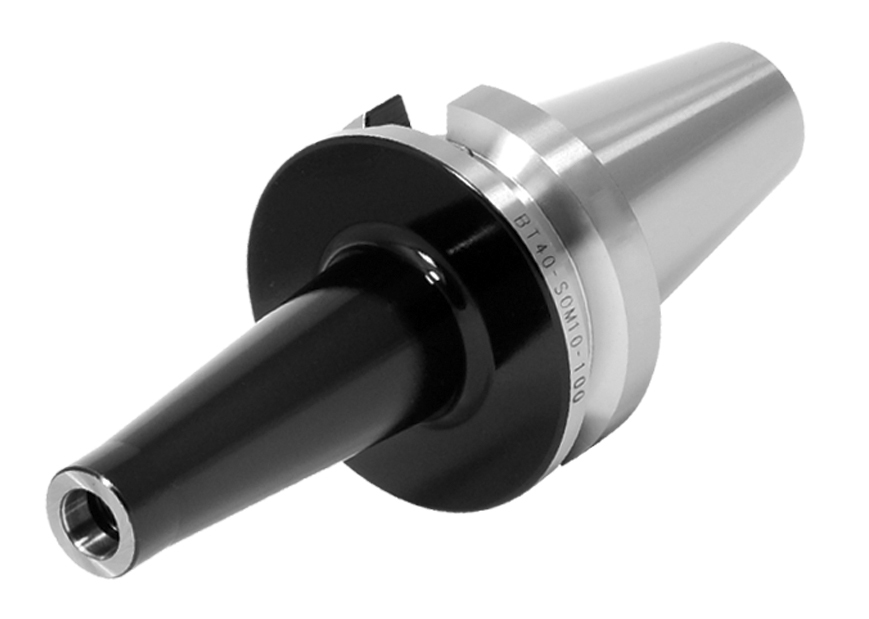

Srew-on type milling arbor MAS BT 40-M16-100

Preview: Srew-on type milling arbor MAS BT 40-M16-100 Preview: Drawing Srew-on type milling arbor MAS BT 40-M16-100
Srew-on type milling arbor MAS BT 40-M16-100
Drawing Srew-on type milling arbor MAS BT 40-M16-100

€61.63 *
€73.34 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-FABT40-M16-100
  • Customs tariff number: 8466 1038
  • European article number: 4049794065501
  • Weight: 1,7 kg
  • In stock: 5
Description Technical data Product Safety Information Evaluations 0
Description
Srew-on type milling arbor MAS BT40 - MAS BT - balanced G = 6,3 15.000 U/min. - BT 40... more
Close menu
Product information "Srew-on type milling arbor MAS BT 40-M16-100"

Srew-on type milling arbor MAS BT40

- MAS BT
- balanced G = 6,3 15.000 U/min.
- BT 40
- G: M16
- L: 100 mm

Tool holders: MAS BT
Type: Srew-in type milling arbors
Size: BT 40
Ø : M16
Related links to "Srew-on type milling arbor MAS BT 40-M16-100"
Technical data

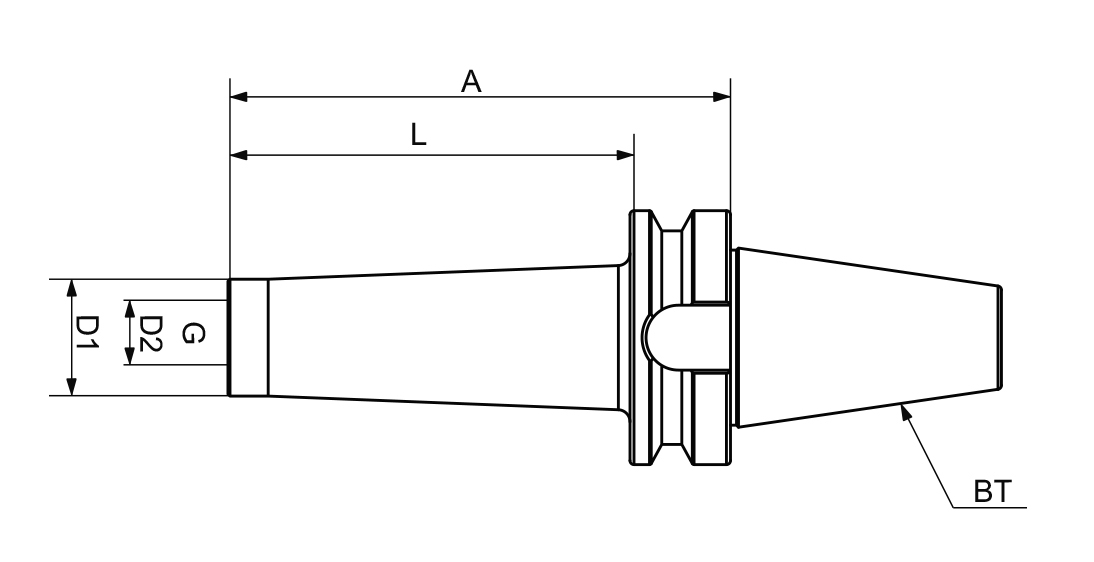

Größe / Size G D2 mm D1 mm D mm A mm L mm BT 40 M8 8,5 13... more
Zurück
Größe /
Size		 G D2
mm		 D1
mm		 D
mm		 A
mm		 L
mm
BT 40 M8 8,5 13 23 77 50
BT 40 M8 8,5 13 25 120 100
BT 40 M10 10,5 18 20 52 25
BT 40 M10 10,5 18 23 77 50
BT 40 M10 10,5 18 28 102 75
BT 40 M10 10,5 18 32 127 100
BT 40 M12 12,5 21 24 52 25
BT 40 M12 12,5 21 28 77 50
BT 40 M12 12,5 21 31 102 75
BT 40 M12 12,5 21 31 138 100
BT 40 M16 17 29 29 52 25
BT 40 M16 17 29 34 77 50
BT 40 M16 17 29 34 102 75
BT 40 M16 17 29 41 138 100
BT 40 M16 17 29 44 152 125
BT 40 M16 17 29 50 188 150

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.
