Combination shell mill adapter MAS BT50, D:27 mm

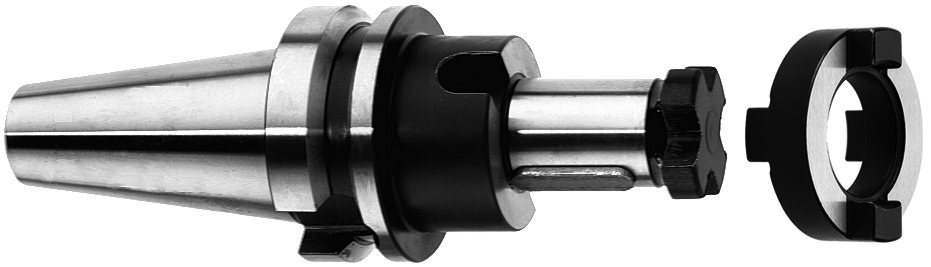

Preview: Combination shell mill adapter MAS BT50, D:27 mm Preview: Drawing Combination shell mill adapter MAS BT50, D:27 mm
Combination shell mill adapter MAS BT50, D:27 mm

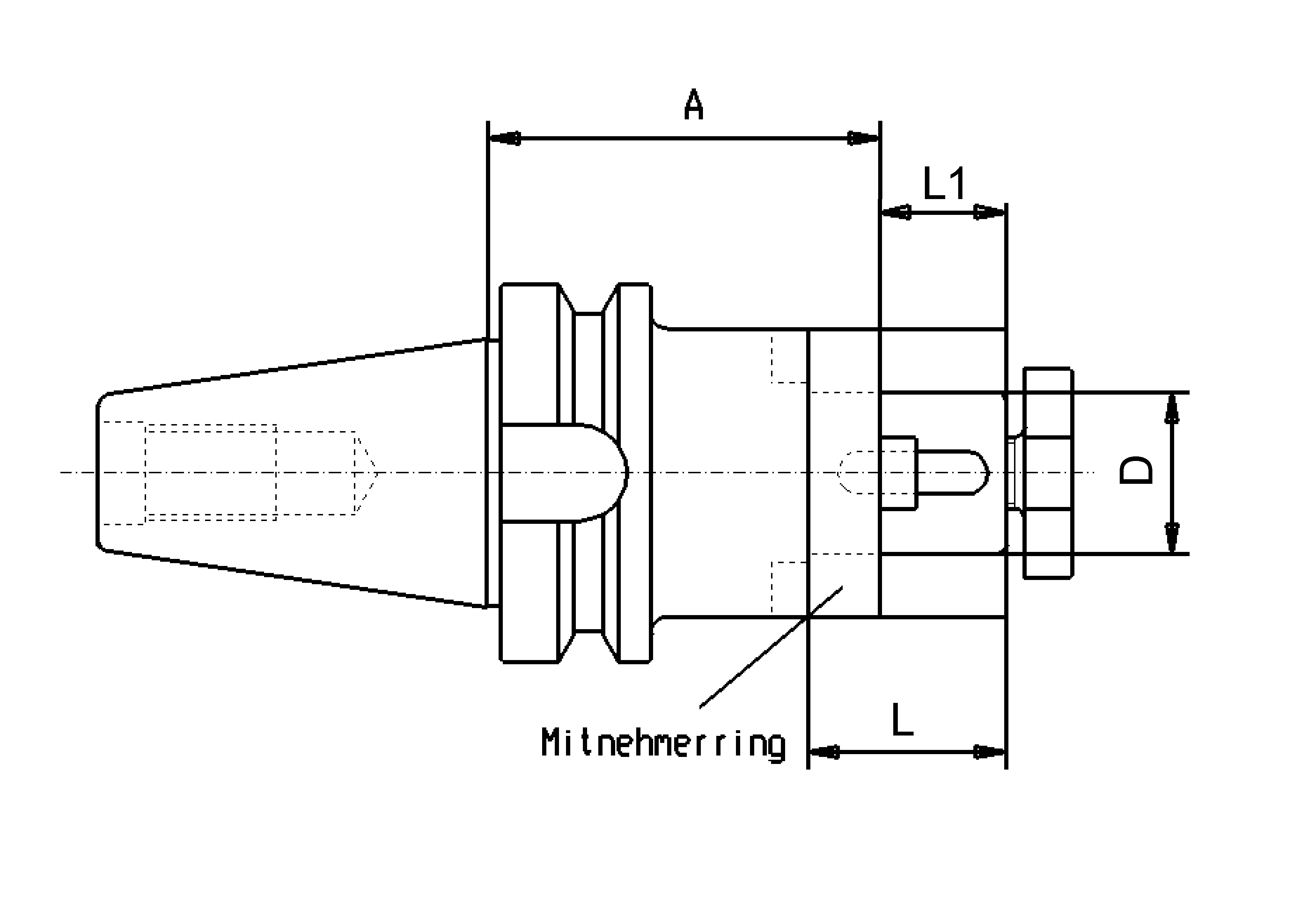

Drawing Combination shell mill adapter MAS BT50, D:27 mm

€65.59 *
€78.05 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 13-7361-50-27
  • Customs tariff number: 8466 1038
  • European article number: 4049794018941
  • Weight: 4,5 kg
  • In stock: 2
Description Technical data Evaluations 0
Description
Combination shell mill adapter MAS BT50 - BT 50 - D: 27 mm more
Close menu
Product information "Combination shell mill adapter MAS BT50, D:27 mm"

Combination shell mill adapter MAS BT50

- BT 50
- D: 27 mm

Related links to "Combination shell mill adapter MAS BT50, D:27 mm"
Technical data
Größe / Size D mm A mm L mm L1 mm BT 40 16 55 27 17 BT 40 22... more
Zurück
Größe /
Size		 D
mm		 A
mm		 L
mm		 L1
mm
BT 40 16 55 27 17
BT 40 22 55 32 19
BT 40 27 55 33 21
BT 40 32 60 38 24
BT 40 40 60 41 27
BT 50 16 70 27 17
BT 50 22 70 31 19
BT 50 27 70 33 21
BT 50 32 70 38 24
BT 50 40 70 41 27
BT 50 50 70 45 30

Gewuchtet G = 6,3 15.000 U/min.
Balanced G = 6,3 15.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
