Safety hood for chuck-Ø up to 650 mm

Safety hood for chuck-Ø up to 650 mm
€984.74 *
€1,171.84 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: ZE-FS04-080
  • Customs tariff number: 8466 3000
  • European article number: 4049794059661
  • Weight: 17,1 kg
  • In stock: 2
Description Technical data Product Safety Information Evaluations 0
Description
Safety hood for big chucks, foldable , safety hood-Ø 800 mm - protection against chips,... more
Close menu
Product information "Safety hood for chuck-Ø up to 650 mm"

Safety hood for big chucks, foldable,
safety hood-Ø 800 mm

- protection against chips, lubricant and coolant
- with safety micro-switch
- fully x-y adjustable
- semi-circular shield, made from aluminium,
  divided into two sections to allow either opening
  of front side only or the entire hood

Diameter A of the safety hood should be
150 - 200 mm larger than the lathe chuck.

Related links to "Safety hood for chuck-Ø up to 650 mm"

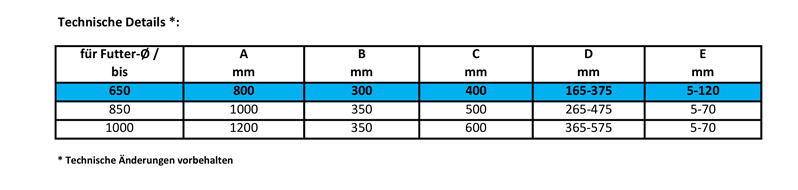

Technical data
Für Futter-Ø bis / For chuck-Ø up to A mm B mm C mm D mm E mm... more
Zurück
Für Futter-Ø bis /
For chuck-Ø up to		A
mm		B
mm		C
mm		D
mm		E
mm
650800300400165 – 3755 – 120
8501000350500265 – 4755 – 70
10001200350600365 – 5755 – 70

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
Informationen zur Produktsicherheit
more
Zurück

Product Safety Information:

  • Suitable only for technically skilled users familiar with the product and for craftsmen.
  • Intended solely for the designated purpose.
  • Improper use may lead to damage and injuries.

Importer/Manufacturer:

Gedema GmbH
Berchumer Str. 74
58093 Hagen

Email: info@messwelt.com
Email: info@gedema.com

Items explicitly stating the manufacturer are excluded.

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "Safety hood for chuck-Ø up to 650 mm"
Write an evaluation
Evaluations will be activated after verification.
Please enter these characters in the following text field.

The fields marked with * are required.
