Solid jaws for independent chucks 630 mm

€1,277.25 *
€1,519.93 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398573170500
  • 84662091
  • 16 kg
  • 0
Hard solid jaws, reversible clamping for Bison independent chucks Ø 630 mm - material:... more
Product information "Solid jaws for independent chucks 630 mm"

Hard solid jaws, reversible clamping for Bison
independent chucks Ø 630 mm

- material: steel
- 4 pieces/set

Related links to "Solid jaws for independent chucks 630 mm"

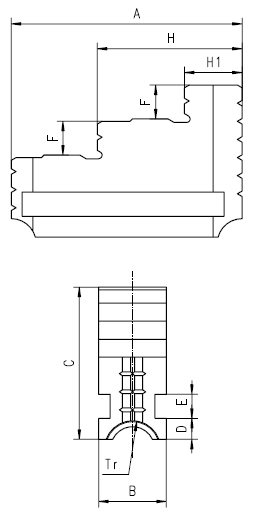

Futtergröße / Chuck size A B C D E F H1 H LH Gewinde / LH Thread kg... more
Futtergröße /
Chuck size
A B C D E F H1 H LH Gewinde /
LH Thread
kg pro Stück /
kg per piece
85 34,0 13 30,0 4,5 5 7 8,0 17,5 Tr 16x2 0,1
100 34,0 13 30,0 4,5 5 7 8,0 17,5 Tr 16x2 0,1
125 / 160 51,0 16 34,5 6,0 5 8 12,5 31,5 Tr 18x4 0,1
200 81,0 32 63,0 8,7 10 14 17,5 48,5 Tr 28x5 0,7
250 96,5 32 63,0 8,7 10 14 23,0 59,0 Tr 28x5 1,3
315 111,0 40 76,5 9,7 12 18 27,0 67,0 Tr 32x6 1,5
400 129,0 40 76,5 9,7 12 18 32,5 78,5 Tr 32x6 1,8
500 152,5 52 93,5 11,7 15 22 35,0 93,0 Tr 36x6 3,4
630 177,0 52 93,5 11,7 15 25 45,0 109,0 Tr 40x6 4,0
800 202,0 70 114,5 15,7 20 25 44,0 122,0 Tr 44x8 7,8

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
