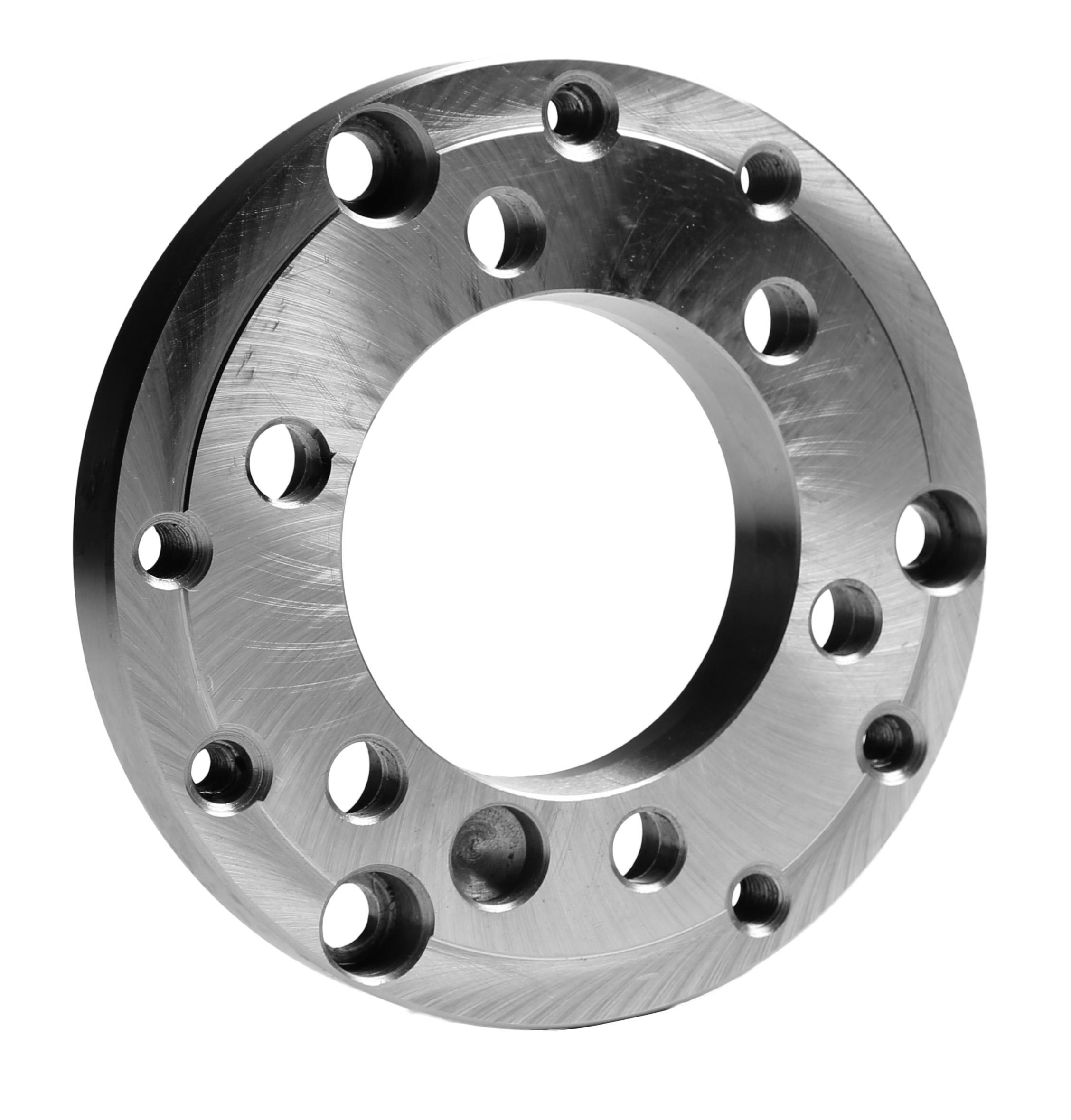

Adaptor plate DIN 55026, Ø 200 Taper 5, steel

€133.99 *
€159.45 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-FV6-200/5
  • 8466 2091
  • 4049794042960
  • 3,2 kg
  • 0
Adaptor plate DIN 55026 (A2), Ø 200 mm Taper 5, fully machined - for chucks according to... more
Product information "Adaptor plate DIN 55026, Ø 200 Taper 5, steel"

Adaptor plate DIN 55026 (A2), Ø 200 mm Taper 5,
fully machined

- for chucks according to DIN 6350
- material: steel

Type: fully machined
Taper: 5
DIN: 55026
Ø : 200 mm
Make: Zentra
Related links to "Adaptor plate DIN 55026, Ø 200 Taper 5, steel"

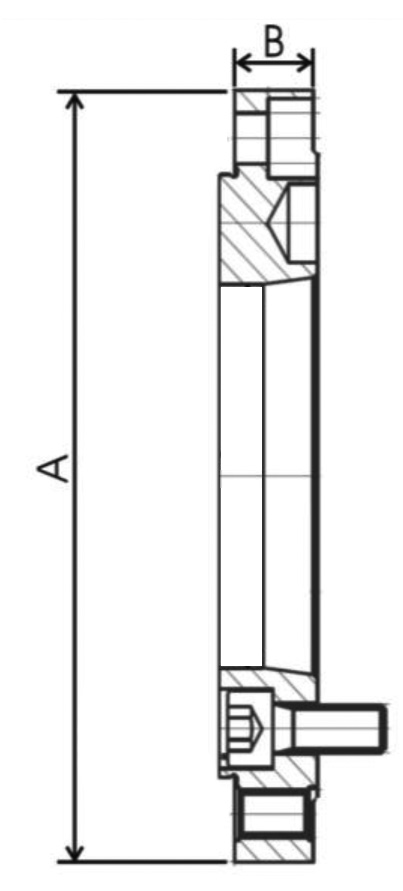

Für / for Ø mm KK / Taper A mm B mm F Lochkreis / PCD mm E Durchlass / Thru-bore... more
Für / for
Ø mm
KK /
Taper
A
mm
B
mm
F Lochkreis /
PCD mm
E Durchlass /
Thru-bore mm
160 5 160 21 104,8 79,5
200 4 200 21 82,6 61
200 5 200 21 104,8 79,5
200 6 200 21 133,4 103
250 5 250 26 104,8 79,5
250 6 250 26 133,4 103
250 8 250 26 171,4 136,2
315 6 315 33 133,4 103
315 8 315 33 171,4 136,2
315 11 315 35 235 192,8
400 6 400 33 133,4 103
400 8 400 33 171,4 136,2
400 11 400 33 235 192,8
500 8 500 34 171,4 136,2
500 11 500 34 235 192,8
630 8 630 42 171,4 136,2
630 11 630 42 235 192,8
630 15 630 42 330,2 281,5


Bitte beachten Sie, dass bei der DIN 55026 das Futter von vorne durchbohrt werden muss. /
Please note that for DIN 55026 the chuck needs to be drilled for front mounting.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
