VDI 40 collet chuck for collets OZ 462E

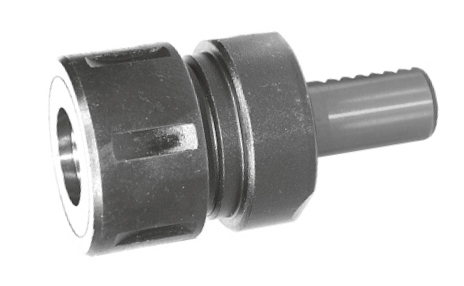

Preview: VDI 40 collet chuck for collets OZ 462E Preview: Drawing VDI 40 collet chuck for collets OZ 462E
VDI 40 collet chuck for collets OZ 462E

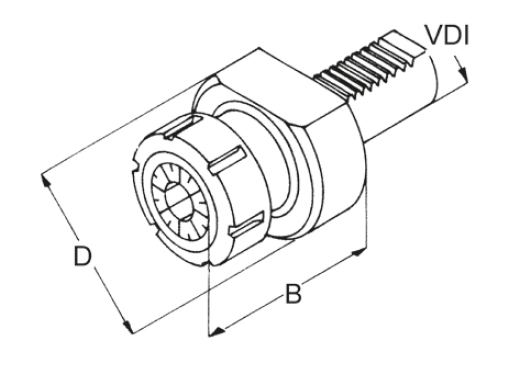

Drawing VDI 40 collet chuck for collets OZ 462E

€123.84 *
€147.37 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-E3-40-25
  • Customs tariff number: 8466 1031
  • European article number: 4260073574198
  • Weight: 2 kg
  • In stock: 3
Description Technical data Evaluations 0
Description
Type E3, VDI 40 collet chuck OZ, for collets DIN 6388 - VDI-Tool holder - VDI 40, OZ 462 E... more
Close menu
Product information "VDI 40 collet chuck for collets OZ 462E"

Type E3, VDI 40 collet chuck OZ, for collets DIN 6388

- VDI-Tool holder
- VDI 40, OZ 462 E

- type E3-40-25

Related links to "VDI 40 collet chuck for collets OZ 462E"
Technical data
VDI OZ D mm Spannbereich / Clamping range B mm 16 415 E 40 2 - 16 65... more
Zurück
VDI OZ D
mm		 Spannbereich /
Clamping range		 B
mm
16 415 E 40 2 - 16 65
20 415 E 50 2 - 16 57
20 4541 E 50 4 - 20 62
25 415 E 58 2 - 16 57
30 462 E 68 2 - 25 75
40 462 E 83 2 - 25 75
40 467 E 83 4 - 32 90
50 462 E 98 2 - 25 75
50 467 E 98 4 - 32 90
60 467 E 123 4 - 32 90

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
