VDI 40 Bar puller, type SGF

Preview: VDI 40 Bar puller, type SGF Preview: Drawing 1 VDI 40 Bar puller, type SGF Preview: Drawing 2 VDI 40 Bar puller, type SGF

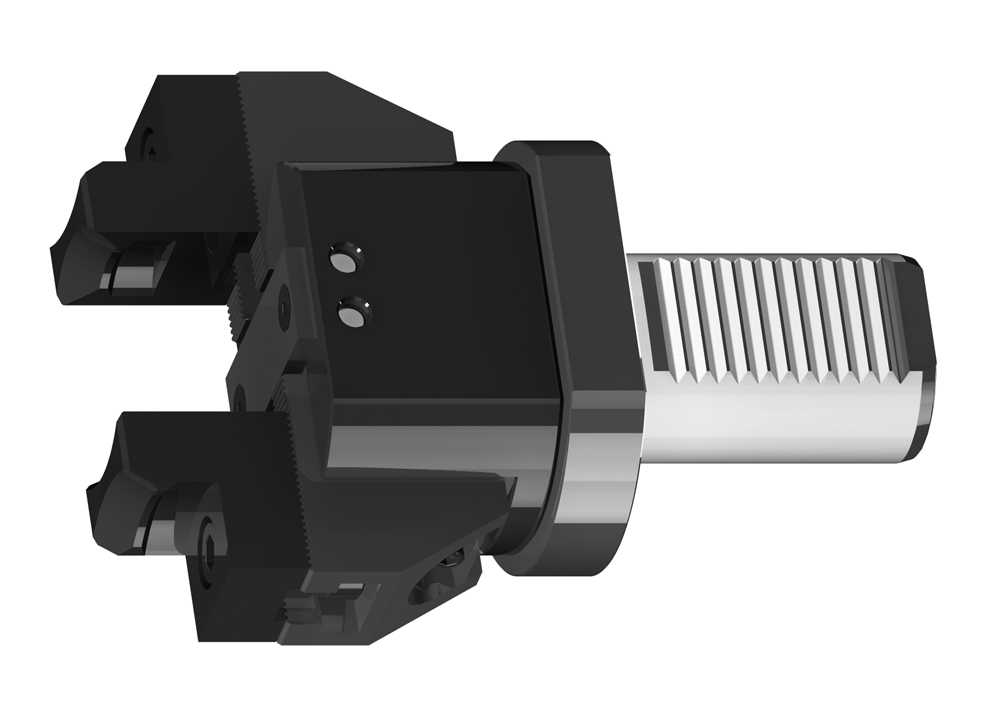

VDI 40 Bar puller, type SGF

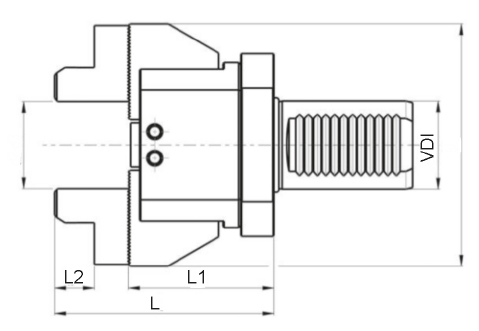

Drawing 1 VDI 40 Bar puller, type SGF

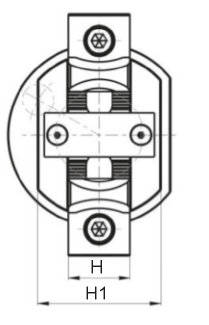

Drawing 2 VDI 40 Bar puller, type SGF

€649.37 *
€772.75 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 47-SGF40
  • Customs tariff number: 8466 1031
  • European article number: 4260073574594
  • Weight: 2,55 kg
  • In stock: 6
Description Technical data Product Safety Information Evaluations 0
Description
VDI 40 Bar puller, type SGF40 - for 2 clamping ranges - with reversible clamping jaws -... more
Close menu
Product information "VDI 40 Bar puller, type SGF"

VDI 40 Bar puller, type SGF40

- for 2 clamping ranges
- with reversible clamping jaws
- clamping range 6 - 110

Type: Bar pullers
VDI: 40
Related links to "VDI 40 Bar puller, type SGF"
Technical data
VDI Spannbereich / Clamping range H mm H1 mm L mm L1 mm L2 mm B mm... more
Zurück
VDI Spannbereich /
Clamping range		 H
mm		 H1
mm		 L
mm		 L1
mm		 L2
mm		 B
mm
Zyl. / cyl. 32 6 - 110 28 56 100 66 18 110
20 6 - 110 28 56 100 66 18 110
30 6 - 110 28 56 100 66 18 110
40 6 - 110 28 56 100 66 18 110
50 6 - 110 28 56 100 66 18 110

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
