Tap holder 10 x 4,0
€33.48*
€39.84 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
81-GEW-10X4,0
Customs tariff number
8466 1020
European Article Number
4049794004531
Weight
0,05 kg
Stock:
24
Related links:
Request Item

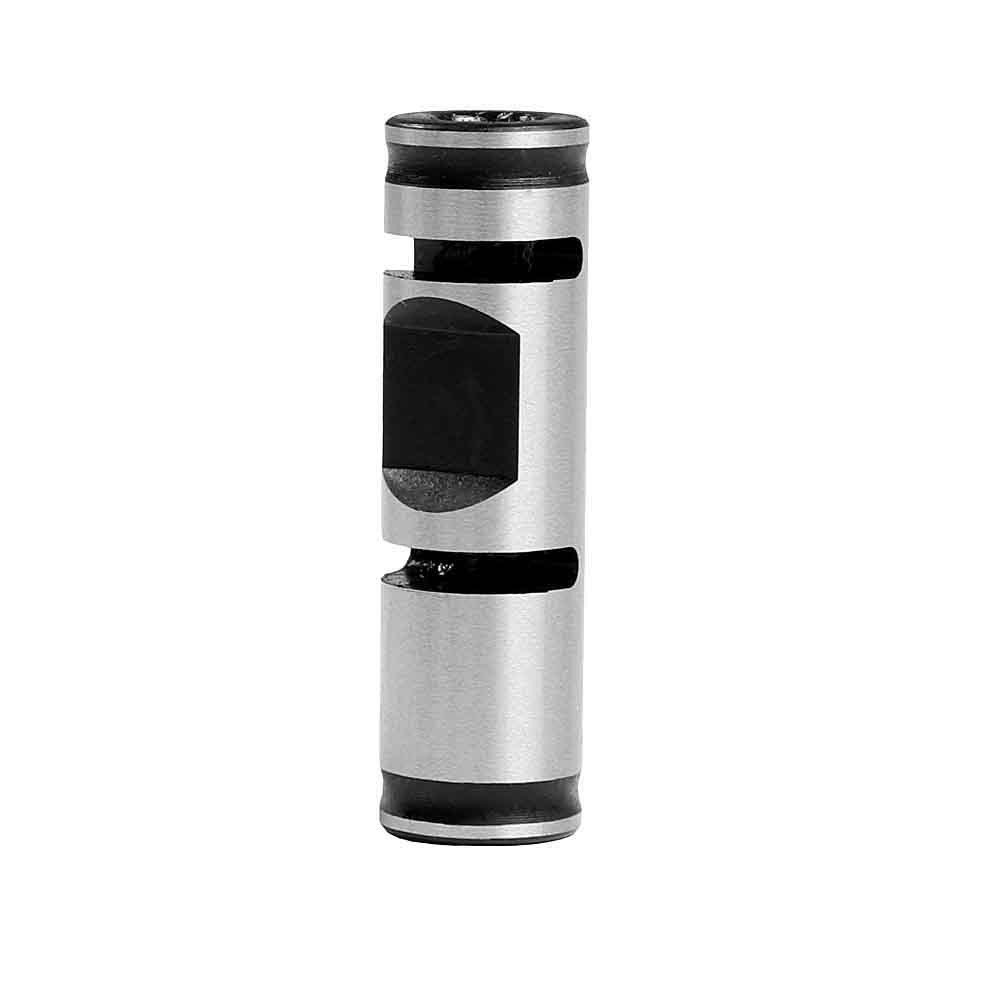

Product information "Tap holder 10 x 4,0"
Tap holder
for machines with rigid tapping
- suitable for standard Weldon chucks
according to DIN 1835 B
- no slip between tap holder and drill
- 100% blade cooling if internal coolant supply is selected
External-Ø 10 mm
Internal-Ø 4,0 mm
| Type: | Tap holders |
|---|---|
| Ø : | 10 mm |

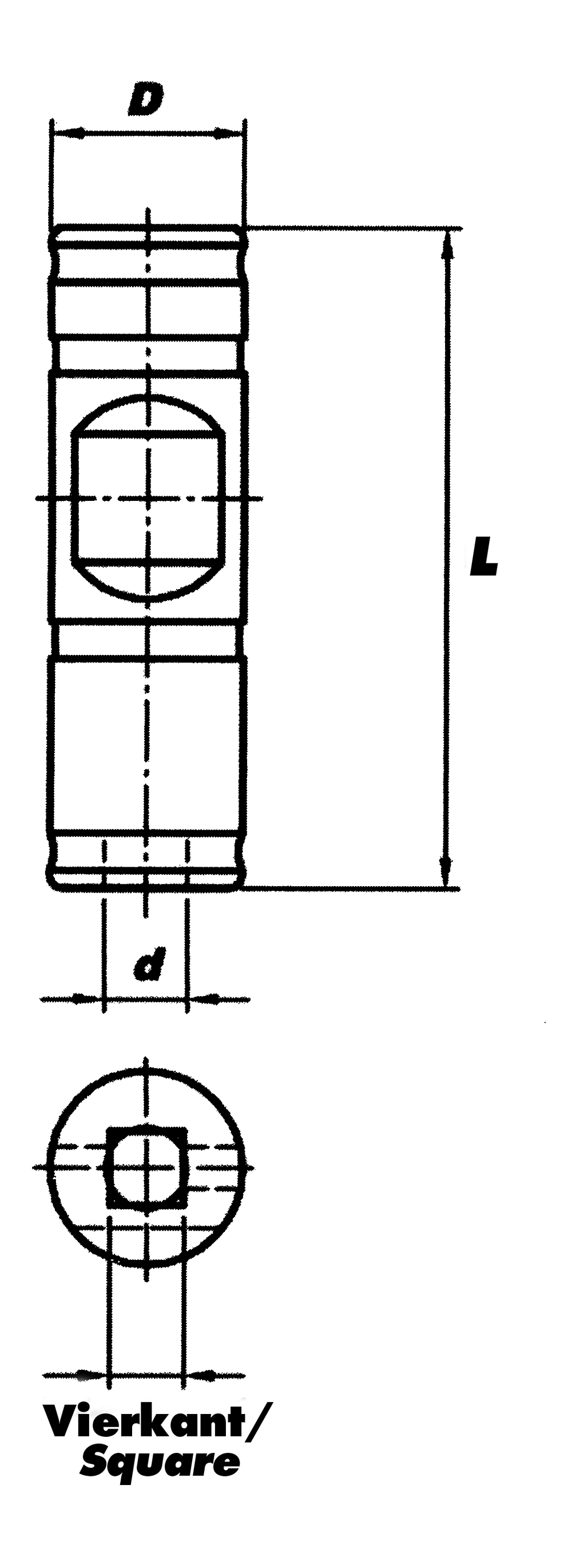

Technical Data
| D mm |
d mm |
Vierkant / Square mm |
L mm |
| 8 | 2,5 | 2,1 | 27 |
| 8 | 2,8 | 2,1 | 27 |
| 10 | 3,5 | 2,7 | 35 |
| 10 | 4,0 | 3,0 | 35 |
| 10 | 4,5 | 3,4 | 35 |
| 12 | 6,0 | 4,9 | 45 |
| 14 | 7,0 | 5,5 | 45 |
| 14 | 8,0 | 6,2 | 45 |
| 16 | 9,0 | 7,0 | 48 |
| 16 | 10,0 | 8,0 | 48 |
| 18 | 11,0 | 9,0 | 48 |
| 20 | 12,0 | 9,0 | 50 |
| 25 | 14,0 | 11,0 | 56 |
| 25 | 16,0 | 12,0 | 56 |
| 32 | 18,0 | 14,5 | 60 |
| 32 | 20,0 | 16,0 | 60 |
| 32 | 22,0 | 18,0 | 60 |
| 40 | 25,0 | 20,0 | 70 |
| 40 | 28,0 | 22,0 | 70 |
| 50 | 32,0 | 24,0 | 80 |
| 50 | 36,0 | 29,0 | 80 |
| 50 | 40,0 | 32,0 | 80 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
