Reducing sleeve 32/18 mm

Preview: Reducing sleeve 32/18 mm Preview: Drawing Reducing sleeve 32/18 mm
Reducing sleeve 32/18 mm

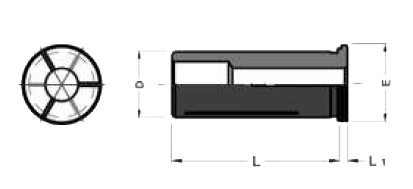

Drawing Reducing sleeve 32/18 mm

€34.49 *
€41.04 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 94-52-32/18
  • Customs tariff number: 8466 1020
  • European article number: 4049794003039
  • Weight: 0,3 kg
  • In stock: 7
Description Technical data Evaluations 0
Description
Reducing sleeve for hydraulic expansion mandrels, D 32 mm, bore- Ø 18 mm - for... more
Close menu
Product information "Reducing sleeve 32/18 mm"

Reducing sleeve for hydraulic expansion mandrels,
D 32 mm, bore-Ø 18 mm

- for diameter reduction of hydraulic expansion mandrels
- mechanically sealed up to 60 bar

Related links to "Reducing sleeve 32/18 mm"
Technical data
D mm Bohrungen Ø mm / Bores Ø mm E mm L mm L1 mm 12 3, 4 16 45 2... more
Zurück
D
mm		 Bohrungen Ø mm /
Bores Ø mm		 E
mm		 L
mm		 L1
mm
12 3, 4 16 45 2
12 5, 6, 8 16 45 2
16 3, 4 20 47 3
16 5, 6, 8, 10, 12 20 47 3
20 3, 4 24 50,5 2
20 5, 6, 8, 10, 12, 14, 16 24 50,5 2
32 10, 12, 16, 18, 20, 25 36 61 3

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
