Reducing sleeve 16/10 mm
€30.53*
€36.33 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
94-52-16/10
Customs tariff number
8466 1020
European Article Number
4049794080030
Weight
0,05 kg
Stock:
8
Related links:
Request Item
Product information "Reducing sleeve 16/10 mm"
Reducing sleeve for hydraulic expansion mandrels,
D 16 mm, bore-Ø 10 mm
- for diameter reduction of hydraulic expansion mandrels
- mechanically sealed up to 60 bar
| Bore Ø mm: | 10 |
|---|---|
| Type: | Reducing sleeves for hydraulic chucks |
| Ø : | 16 mm |

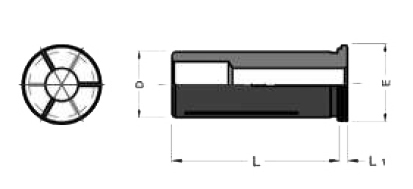

Technical Data
| D mm |
Bohrungen Ø mm / Bores Ø mm |
E mm |
L mm |
L1 mm |
| 12 | 3, 4 | 16 | 45 | 2 |
| 12 | 5, 6, 8 | 16 | 45 | 2 |
| 16 | 3, 4 | 20 | 47 | 3 |
| 16 | 5, 6, 8, 10, 12 | 20 | 47 | 3 |
| 20 | 3, 4 | 24 | 50,5 | 2 |
| 20 | 5, 6, 8, 10, 12, 14, 16 | 24 | 50,5 | 2 |
| 32 | 10, 12, 16, 18, 20, 25 | 36 | 61 | 3 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
