Extension sleeve DIN 2187, taper 6/4
€59.54*
€70.85 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
01-65-6/4
Customs tariff number
8466 1020
European Article Number
4260073570336
Weight
6,2 kg
Stock:
4
Related links:
Request Item
Product information "Extension sleeve DIN 2187, taper 6/4"

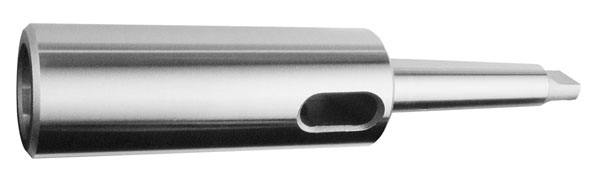

Extension sleeve, DIN 2187 taper 6/4
- external taper 6, internal taper 4
- completely hardened and ground
| External taper: | 6 |
|---|---|
| Internal taper: | 4 |
| Type: | Extension sleeves |

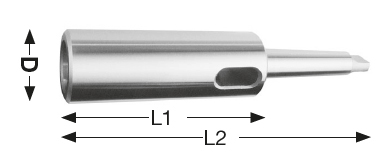

Technical Data
| Außenkegel / External taper |
Innenkegel / Internal taper |
D mm |
L1 mm |
L2 mm |
ca. g |
| 1 | 1 | 20 | 83 | 145 | 190 |
| 1 | 2 | 30 | 98 | 160 | 340 |
| 2 | 1 | 20 | 85 | 160 | 250 |
| 2 | 2 | 30 | 100 | 175 | 400 |
| 2 | 3 | 36 | 121 | 196 | 840 |
| 2 | 4 | 48 | 145 | 220 | 1300 |
| 3 | 1 | 20 | 81 | 175 | 400 |
| 3 | 2 | 30 | 100 | 194 | 550 |
| 3 | 3 | 36 | 112 | 215 | 1000 |
| 3 | 4 | 48 | 146 | 240 | 1500 |
| 4 | 1 | 20 | 82,5 | 200 | 800 |
| 4 | 2 | 30 | 97,5 | 215 | 850 |
| 4 | 3 | 36 | 122,5 | 240 | 1300 |
| 4 | 4 | 48 | 147,5 | 265 | 1900 |
| 4 | 5 | 63 | 182,5 | 300 | 3310 |
| 5 | 1 | 20 | 82,5 | 232 | 1800 |
| 5 | 2 | 30 | 97,5 | 247 | 1900 |
| 5 | 3 | 36 | 118,5 | 268 | 2150 |
| 5 | 4 | 48 | 150,5 | 300 | 2750 |
| 5 | 5 | 63 | 182,5 | 335 | 4200 |
| 5 | 6 | 82 | 247 | 396 | 640 |
| 6 | 3 | 36 | 120 | 330 | 4580 |
| 6 | 4 | 48 | 180 | 355 | 5420 |
| 6 | 5 | 63 | 180 | 390 | 6750 |
| 6 | 6 | 82 | 241 | 451 | 11890 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||
