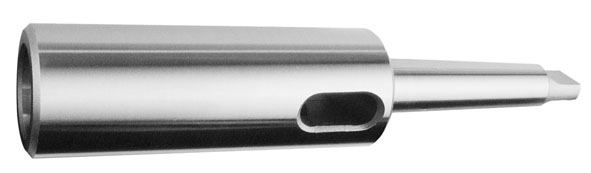

Extension sleeve DIN 2187, taper 1/2

Preview: Extension sleeve DIN 2187, taper 1/2 Preview: Drawing Extension sleeve DIN 2187, taper 1/2
Extension sleeve DIN 2187, taper 1/2

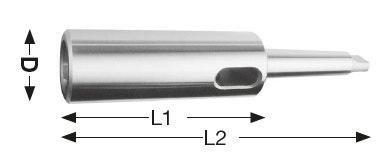

Drawing Extension sleeve DIN 2187, taper 1/2

€8.42 *
€10.02 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • Order number: 01-65-1/2
  • Customs tariff number: 8466 1020
  • European article number: 4260073570213
  • Weight: 0,2 kg
  • In stock: 26
Description Technical data Evaluations 0
Description
Extension sleeve, DIN 2187 taper 1/2 - external taper 1, internal taper 2 - completely... more
Close menu
Product information "Extension sleeve DIN 2187, taper 1/2"

Extension sleeve, DIN 2187 taper 1/2

- external taper 1, internal taper 2
- completely hardened and ground

Related links to "Extension sleeve DIN 2187, taper 1/2"
Technical data
Außenkegel / External taper Innenkegel / Internal taper D mm L1 mm L2 mm ca. g... more
Zurück
Außenkegel /
External taper		 Innenkegel /
Internal taper		 D
mm		 L1
mm		 L2
mm		 ca.
g
1 1 20 83 145 190
1 2 30 98 160 340
2 1 20 85 160 250
2 2 30 100 175 400
2 3 36 121 196 840
2 4 48 145 220 1300
3 1 20 81 175 400
3 2 30 100 194 550
3 3 36 112 215 1000
3 4 48 146 240 1500
4 1 20 82,5 200 800
4 2 30 97,5 215 850
4 3 36 122,5 240 1300
4 4 48 147,5 265 1900
4 5 63 182,5 300 3310
5 1 20 82,5 232 1800
5 2 30 97,5 247 1900
5 3 36 118,5 268 2150
5 4 48 150,5 300 2750
5 5 63 182,5 335 4200
5 6 82 247 396 640
6 3 36 120 330 4580
6 4 48 180 355 5420
6 5 63 180 390 6750
6 6 82 241 451 11890

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
