Drill and reamer extension, 3/3-600

Drill and reamer extension, 3/3-600
€67.32 *
€80.11 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 01-75-3/3-600
  • 8466 1020
  • 4260073570596
  • 3,2 kg
  • 21
Drill and reamer extension 3/3-600 - external taper 3, internal taper 3 - completely... more
Product information "Drill and reamer extension, 3/3-600"

Drill and reamer extension 3/3-600

- external taper 3, internal taper 3
- completely ground, taper hardened
- length 600 mm



Type: Drill and reamer extensions
External taper: 3
Internal taper: 3
Length: 600 mm
Related links to "Drill and reamer extension, 3/3-600"

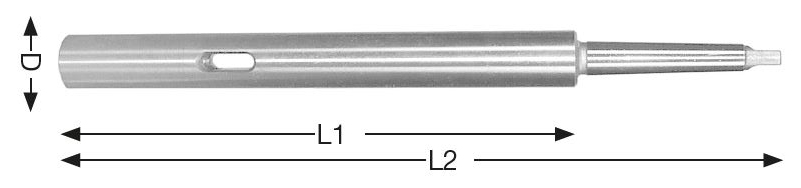

Außenkegel / External taper Innenkegel / Internal taper D mm L1 mm L2 mm ca. g... more
Außenkegel /
External taper
Innenkegel /
Internal taper
D
mm
L1
mm
L2
mm
ca.
g
1 1 20 138 200 250
1 1 20 188 250 375
1 1 20 238 300 500
1 1 20 288 350 625
1 1 20 338 400 750
1 1 20 388 450 900
1 1 20 438 500 1000
2 2 25 125 200 430
2 2 25 175 250 625
2 2 25 225 300 820
2 2 25 275 350 1015
2 2 25 325 400 1200
2 2 25 375 450 1400
2 2 25 425 500 1600
2 2 25 525 600 1800
3 3 32 156 250 1000
3 3 32 206 300 1300
3 3 32 256 350 1550
3 3 32 306 400 1850
3 3 32 356 450 2100
3 3 32 405 500 2400
3 3 32 506 600 2700
4 4 40 182,5 300 1650
4 4 40 232,5 350 2150
4 4 40 282,5 400 2650
4 4 40 332,5 450 3100
4 4 40 382,5 500 3600
4 4 40 482,5 600 4200

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
