Shrink chuck SK 40 Ø 32 x 100 mm, DIN 69871

€77.76 *
€92.53 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 13-SHFSK40-32-100
  • 8466 1038
  • 4049794065297
  • 1,4 kg
  • 3
Shrink chuck DIN 69871, SK40 - DIN 69871 AD/B - balanced G = 2,5 25.000 U/min. - SK 40 -... more
Product information "Shrink chuck SK 40 Ø 32 x 100 mm, DIN 69871"

Shrink chuck DIN 69871, SK40

- DIN 69871 AD/B
- balanced G = 2,5 25.000 U/min.
- SK 40
- D2: 32 mm
- A: 100 mm

Related links to "Shrink chuck SK 40 Ø 32 x 100 mm, DIN 69871"

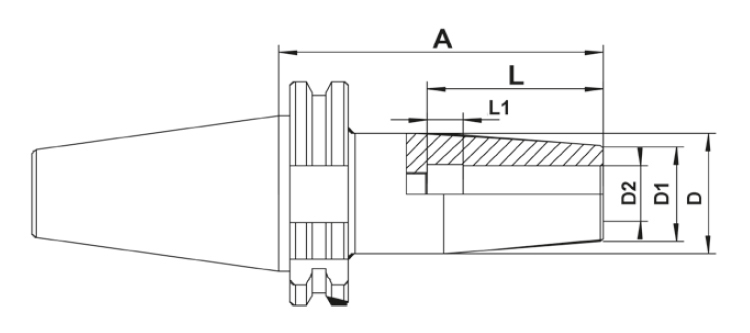

Größe / Size D2 mm D1 mm D mm L mm L1 mm A mm SK 40 14 27 34 47... more
Größe /
Size
D2
mm
D1
mm
D
mm
L
mm
L1
mm
A
mm
SK 40 14 27 34 47 10 80
SK 40 16 27 34 50 10 80
SK 40 16 27 34 50 10 120
SK 40 16 27 34 50 10 160
SK 40 18 33 40 50 10 80
SK 40 20 33 40 52 10 80
SK 40 20 33 40 52 10 120
SK 40 20 33 40 52 10 160
SK 40 25 44 53 58 10 100
SK 40 25 44 53 58 10 120
SK 40 25 44 53 58 10 160
SK 40 32 44 53 62 10 100
SK 40 32 44 53 62 10 160

Gewuchtet G = 2,5 25.000 U/min. /
Balanced G = 2,5 25.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
