Srew-on type milling arbor MAS BT 40-M10-25
€49.25*
€58.61 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-FABT40-M10-25
Customs tariff number
8466 1038
European Article Number
4049794065396
Weight
1,1 kg
Stock:
3
Related links:
Request Item
Product information "Srew-on type milling arbor MAS BT 40-M10-25"
Srew-on type milling arbor MAS BT40
- MAS BT
- balanced G = 6,3 15.000 U/min.
- BT 40
- G: M10
- L: 25 mm
| Size: | BT 40 |
|---|---|
| Tool holders: | MAS BT |
| Type: | Srew-in type milling arbors |
| Ø : | M10 |

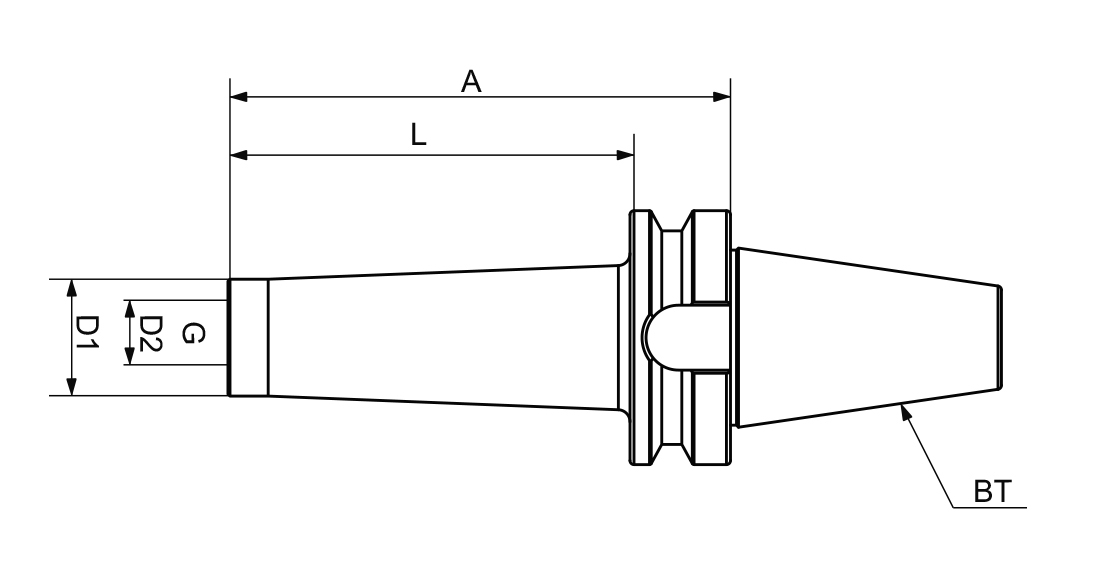

Technical Data
| Größe / Size |
G | D2 mm |
D1 mm |
D mm |
A mm |
L mm |
| BT 40 | M8 | 8,5 | 13 | 23 | 77 | 50 |
| BT 40 | M8 | 8,5 | 13 | 25 | 120 | 100 |
| BT 40 | M10 | 10,5 | 18 | 20 | 52 | 25 |
| BT 40 | M10 | 10,5 | 18 | 23 | 77 | 50 |
| BT 40 | M10 | 10,5 | 18 | 28 | 102 | 75 |
| BT 40 | M10 | 10,5 | 18 | 32 | 127 | 100 |
| BT 40 | M12 | 12,5 | 21 | 24 | 52 | 25 |
| BT 40 | M12 | 12,5 | 21 | 28 | 77 | 50 |
| BT 40 | M12 | 12,5 | 21 | 31 | 102 | 75 |
| BT 40 | M12 | 12,5 | 21 | 31 | 138 | 100 |
| BT 40 | M16 | 17 | 29 | 29 | 52 | 25 |
| BT 40 | M16 | 17 | 29 | 34 | 77 | 50 |
| BT 40 | M16 | 17 | 29 | 34 | 102 | 75 |
| BT 40 | M16 | 17 | 29 | 41 | 138 | 100 |
| BT 40 | M16 | 17 | 29 | 44 | 152 | 125 |
| BT 40 | M16 | 17 | 29 | 50 | 188 | 150 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
