Screw-on type milling arbor SK40-M12-50 DIN 69871
€49.03*
€58.35 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
13-FASK40-M12-50
Customs tariff number
8466 1038
European Article Number
4049794064948
Weight
0,95 kg
Stock:
11
Related links:
Request Item
Product information "Screw-on type milling arbor SK40-M12-50 DIN 69871"
Screw-on type milling arbor DIN 69871, SK 40
- DIN 69871
- SK 40
- G: M12
- L: 50 mm
| Size: | SK 40 |
|---|---|
| Tool holders: | DIN 69871 |
| Type: | Srew-in type milling arbors |
| Ø : | M12 |

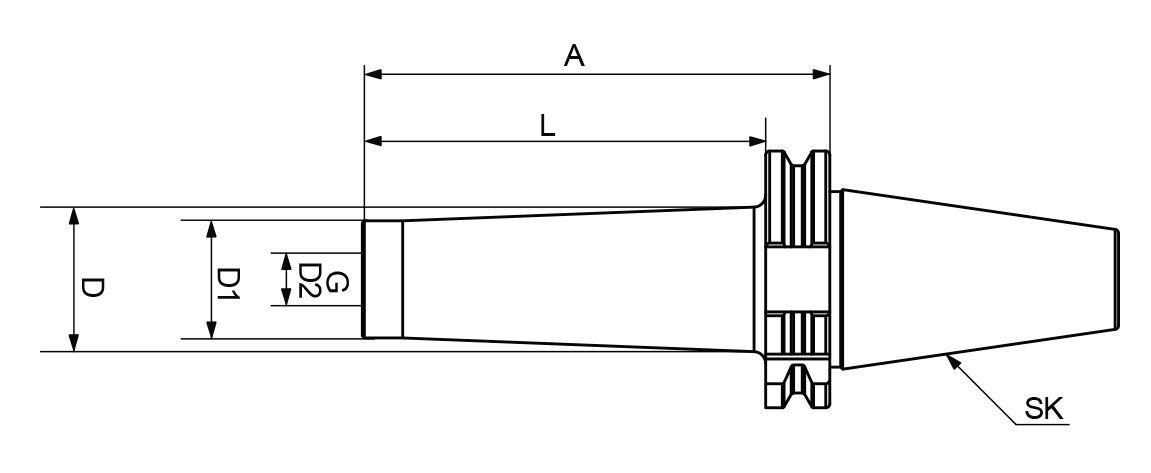

Technical Data
| Größe / Size |
G | D2 mm |
D1 mm |
D mm |
A mm |
L mm |
| SK 40 | M8 | 8,5 | 13 | 15 | 44 | 25 |
| SK 40 | M8 | 8,5 | 13 | 23 | 69 | 50 |
| SK 40 | M8 | 8,5 | 13 | 23 | 94 | 75 |
| SK 40 | M10 | 10,5 | 18 | 20 | 44 | 25 |
| SK 40 | M10 | 10,5 | 18 | 23 | 69 | 50 |
| SK 40 | M10 | 10,5 | 18 | 28 | 94 | 75 |
| SK 40 | M12 | 12,5 | 21 | 24 | 44 | 25 |
| SK 40 | M12 | 12,5 | 21 | 24 | 69 | 50 |
| SK 40 | M12 | 12,5 | 21 | 31 | 94 | 75 |
| SK 40 | M12 | 12,5 | 21 | 33 | 119 | 100 |
| SK 40 | M16 | 17 | 29 | 29 | 44 | 25 |
| SK 40 | M16 | 17 | 29 | 34 | 69 | 50 |
| SK 40 | M16 | 17 | 29 | 34 | 94 | 75 |
| SK 40 | M16 | 17 | 29 | 36 | 119 | 100 |
| SK 40 | M16 | 17 | 29 | 40 | 144 | 125 |
| Gewuchtet G = 6,3 15.000 U/min. / Balanced G = 6,3 15.000 U/min. |
||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||||
