Safety hood, slideable, extra high 1000 mm
€2,745.14*
€3,266.72 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
ZE-FS21-1000
Customs tariff number
8466 3000
European Article Number
4049794669150
Weight
40 kg
Stock:
1
Related links:
Request Item
Product information "Safety hood, slideable, extra high 1000 mm"
Safety hood, slideable, 1000 mm
- for big chucks up to Ø 800 mm
- slideable shield
- with safety micro-switch
- protection against chips, lubricant and coolant
- easy adaption to the head at the machine
Diameter C of the safety hood should be
150-200 mm larger than the lathe chuck.

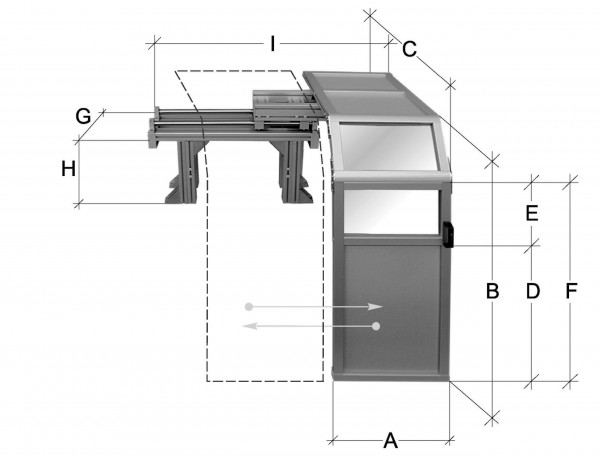

Technical Data
| Für Futter-Ø / For chuck-Ø | A mm | B mm | C mm | D mm | E mm | F mm | G mm | H mm | I mm |
| 800 | 550 | 1000 | 1000 | 518 | 282 | 800 | 300 | 390 – 590 | 930 – 1490 |
| 1200 | 550 | 1500 | 1400 | 918 | 282 | 1200 | 300 | 390 – 590 | 930 – 1490 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved | |||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
