Table vice BASIC 125 with swivel base

€121.90 *
€145.06 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • BAS-SWBS-125
  • 8205 7000
  • 4049794079874
  • 11 kg
  • 4
Table vice type BASIC 125 - jaw width 127 mm - swivel base, 360° rotatable - with pipe... more
Product information "Table vice BASIC 125 with swivel base"

Table vice type BASIC 125
- jaw width 127 mm

- swivel base, 360° rotatable
- with pipe jaws

Related links to "Table vice BASIC 125 with swivel base"

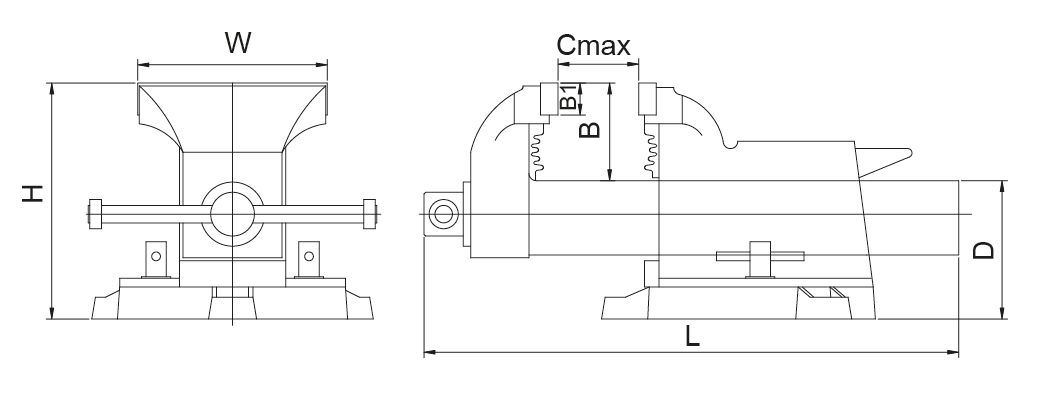

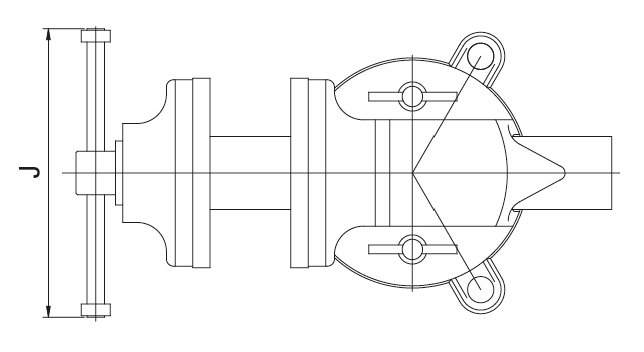

Typ / Type W mm Cmax mm H mm B mm B1 mm L mm J mm Spannkraft / Clamping... more
Typ /
Type
W
mm
Cmax
mm
H
mm
B
mm
B1
mm
L
mm
J
mm
Spannkraft /
Clamping force daN
kg
100 104 100 148 61 18 310 178 1760 7
125 127 125 165 68 22 370 198 2250 11
150 154 150 183 78 22 420 228 2740 14
200 205 200 202 87 22 500 238 2940 18
250 253 250 263 100 22 570 263 2940 24

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
