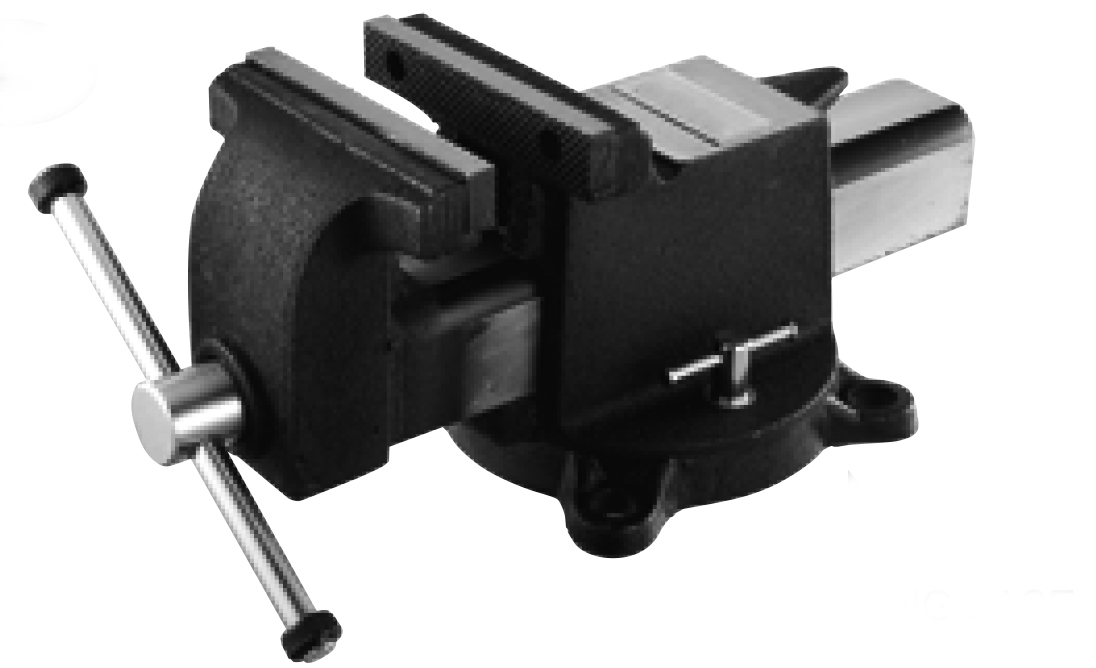

Table vice BASIC 100 with swivel base
€94.46*
€112.41 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
BAS-SWBS-100
Customs tariff number
8205 7000
European Article Number
4049794079867
Weight
7 kg
Stock:
3
Related links:
Request Item
Product information "Table vice BASIC 100 with swivel base"
Table vice type BASIC 100
- jaw width 104 mm
- swivel base, 360° rotatable
- with pipe jaws
| Clamping capacity: | 100 mm |
|---|---|
| Jaw width: | 100 mm |
| Make: | Basic |
| Type: | mechanically |
| Type: | Table vices |

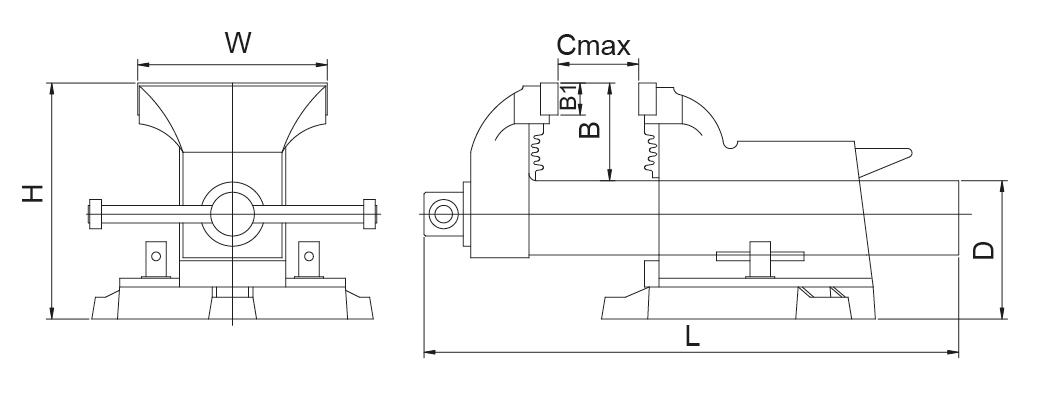

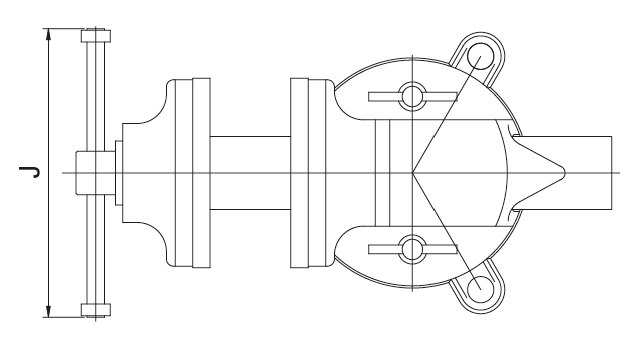

Technical Data
| Typ / Type |
W mm |
Cmax mm |
H mm |
B mm |
B1 mm |
L mm |
J mm |
Spannkraft / Clamping force daN |
kg |
| 100 | 104 | 100 | 148 | 61 | 18 | 310 | 178 | 1760 | 7 |
| 125 | 127 | 125 | 165 | 68 | 22 | 370 | 198 | 2250 | 11 |
| 150 | 154 | 150 | 183 | 78 | 22 | 420 | 228 | 2740 | 14 |
| 200 | 205 | 200 | 202 | 87 | 22 | 500 | 238 | 2940 | 18 |
| 250 | 253 | 250 | 263 | 100 | 22 | 570 | 263 | 2940 | 24 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
