NC precision power vice type MC2-200L, long
€1,975.90*
Available, delivery time: 1-3 workdays
Product information "NC precision power vice type MC2-200L, long"
NC precision power vice MC2-200L, long
- long version of type MC 2, with large opening range
- high-power vice with mechanical force itensifier
- body made from cast iron FCD 65, jaws made from steel
- ground below and side-ways
- "Anti-lifting" mechanism
- integrated pull down
- mechanical force increase, no seals required
- pre-selection of clamping force
- incl. 4 clamping brackets, eye bolts, keys and t-nuts
| Clamping capacity: | 400 mm |
|---|---|
| Jaw width: | 200 mm |
| Make: | Zentra |
| Type: | mechanically |
| Type: | High-power vices |
Technical Data
| Vorwahlstufe / Pre-selection |
Spannkraft Typ 160 / Clamping force type 160 |
Spannkraft Typ 200 / Clamping force type 200 |
| 0 | 500 daN | 500 daN |
| 1 | 1300 daN | 1500 daN |
| 2 | 2700 daN | 3200 daN |
| 3 | 4000 daN | 5100 daN |
| 4 | 5400 daN | 6800 daN |

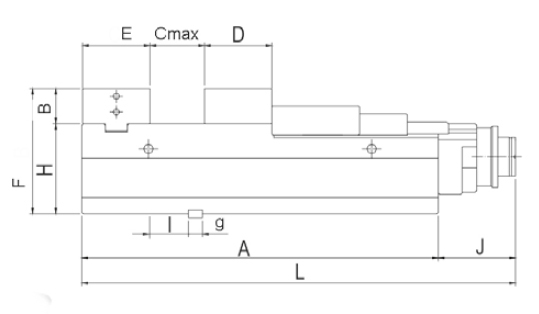

| Typ MC2 / Type MC2 |
A mm |
F mm |
E mm |
D mm |
Cmax mm |
B mm |
g mm |
H mm |
I mm |
J mm |
K mm |
L mm |
W mm |
N mm |
kg |
| 160L | 535 | 160 | 86 | 86 | 355 | 45 | 18 | 115 | 49 | 98,5 | 162 | 633,55 | 160 | 174 | 64 |
| 200L | 610 | 180 | 100 | 97 | 405 | 55 | 18 | 125 | 66 | 100 | 202 | 708,5 | 200 | 214 | 103 |
| Inkl. 4 Spannpratzen, Hebeösen, Schlüssel und Nutensteine Incl. 4 clamping brackets, eye bolts, keys and t-nuts |
|||||||||||||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||||||||||||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
