2-jaw scroll chuck DIN 6350 Bison type 3105-400

Preview: Zweibacken-Drehfutter DIN 6350 Typ 3105-400 Preview: Zeichnung Zweibacken-Drehfutter DIN 6350 Typ 3105-400
Zweibacken-Drehfutter DIN 6350 Typ 3105-400
Zeichnung Zweibacken-Drehfutter DIN 6350 Typ 3105-400

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • Order number: 353105080000
  • Customs tariff number: 84662091
  • Open text field 2: 1
  • European article number:
  • Weight: 85 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
2-jaw scroll chuck DIN 6350 Bison - plain back mounting DIN 6350  - type 3105 ... more
Close menu
Product information "2-jaw scroll chuck DIN 6350 Bison type 3105-400"

2-jaw scroll chuck DIN 6350 Bison

- plain back mounting DIN 6350
- type 3105 Ø 400 mm
- hardened and ground working surfaces
- balanced scroll plate
- material of body: cast iron
- 2-piece jaws
- incl. 1 set of soft top jaws, 1 set of hard master jaws
  and 1 wrench

Related links to "2-jaw scroll chuck DIN 6350 Bison type 3105-400"

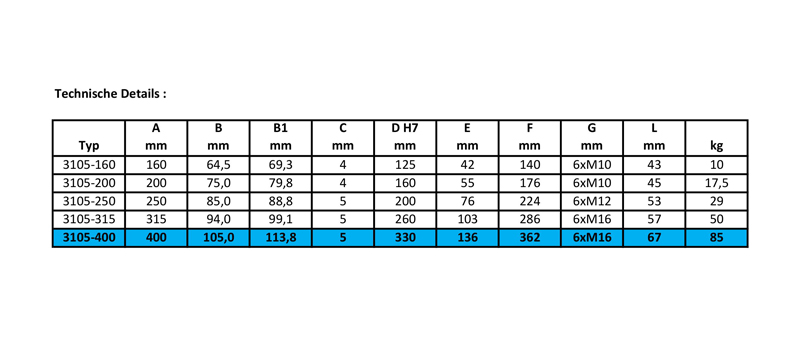

Technical data
