Hard top jaws for 6-jaw scroll chucks Ø 200 mm

€542.25 *
€645.28 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 398540840000
  • 84662091
  • 2,4 kg
  • 0
Hard top jaws for Bison 6-jaw scroll chucks Ø 200 mm - material: steel - 6 pieces/set more

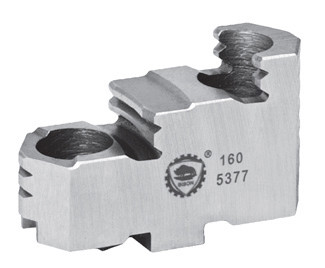

Product information "Hard top jaws for 6-jaw scroll chucks Ø 200 mm"

Hard top jaws
for Bison 6-jaw scroll chucks Ø 200 mm

- material: steel
- 6 pieces/set

Make: Bison
Jaws: Hard top jaws
Jaws for lathe chucks type: 6-jaw lathe chucks
Jaws for Ø: 200 mm
Related links to "Hard top jaws for 6-jaw scroll chucks Ø 200 mm"

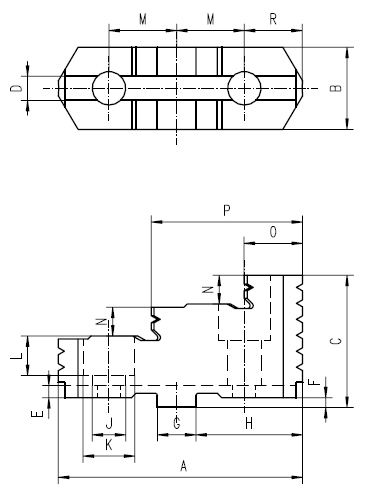

Futtergröße / Chuck size A B C D E F G... more
Futtergröße /
Chuck size
A B C D E F G H J K L M N O P R kg pro Stück /
kg per piece
200 80 27,0 43,5 7,95 4 3,2 12,69 34,9 11 18 12,0 22,25 9,5 21,5 51,0 19,0 0,4
250 95 32,5 51,5 12,71 4 3,2 19,04 39,7 14 20 14,5 27,00 12,0 24,5 59,0 22,0 0,6
315 110 37,0 55,0 12,71 4 3,2 19,04 47,6 14 20 14,5 31,75 13,0 26,5 68,0 35,4 0,9
400 127 42,0 64,5 12,71 4 6,3 19,04 57,1 18 26 18,5 38,10 13,5 27,0 76,5 28,5 1,4
500 127 42,0 74,5 12,71 4 6,3 19,04 57,1 22 33 21,0 38,10 17,0 50,0 88,0 28,5 1,6
630 127 52,0 82,0 12,71 4 6,3 19,04 57,1 22 33 21,0 38,10 21,0 51,0 89,0 28,5 2,4

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
