4-jaw scroll chuck Bison type 3744-125-4

Preview: Vierbacken-Drehfutter Typ 3744-125-4 Preview: Zeichnung Vierbacken-Drehfutter Typ 3744-125-4
Vierbacken-Drehfutter Typ 3744-125-4
Zeichnung Vierbacken-Drehfutter Typ 3744-125-4

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • Order number: 353744220000
  • Customs tariff number: 84662091
  • Open text field 2: 1
  • European article number:
  • Weight: 6,273 kg
  • In stock: 0
Description Technical data Evaluations 0
Description
4-jaw scroll chuck Bison - type D mounting (CAMLOCK) DIN 55029  - type 3744  Ø... more
Close menu
Product information "4-jaw scroll chuck Bison type 3744-125-4"

4-jaw scroll chuck Bison

- type D mounting (CAMLOCK) DIN 55029
- type 3744 Ø 125 mm, taper 4
- hardened and ground working surfaces
- balanced scroll plate
- material of body: steel
- solid jaws
- incl. 1 set of hard outside solid jaws, 1 set of hard inside solid jaws
  and 1 wrench

Related links to "4-jaw scroll chuck Bison type 3744-125-4"

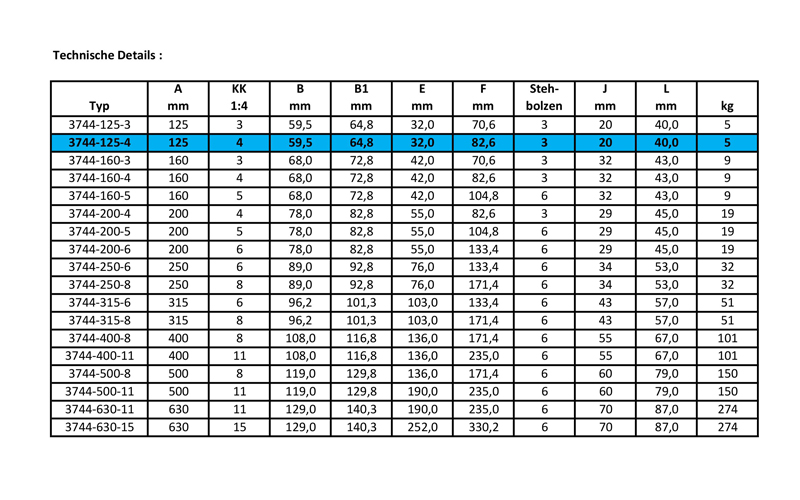

Technical data
more
Zurück

353744220000-3744-125-4

Evaluations 0
Read, write and discuss reviews... more
Close menu
Customer evaluation for "4-jaw scroll chuck Bison type 3744-125-4"
Write an evaluation
Evaluations will be activated after verification.

The fields marked with * are required.

Accessories 6 Customers also bought Customers also viewed
Accessories 6
Weiche Aufsatzbacken Vierbacken-Drehfutter 125 mm Soft top jaws for 4-jaw scroll chucks Ø 125 mm
€81.75 *

Harte Bohrbacken Vierbacken-Drehfutter Ø 125 mm Hard solid jaws, outside clamping for Ø 125 mm
€156.00 *

Harte Drehbacken Vierbacken-Drehfutter Ø 125 mm Hard solid jaws, inside clamping for Ø 125 mm
€209.25 *

Monoblockbacken Vierbacken-Drehfutter Ø 125 mm Soft solid jaws for 4-jaw scroll chucks Ø 125 mm
€107.25 *

Harte Aufsatzbacken Vierbacken-Drehfutter Ø 125 mm Hard top jaws for 4-jaw scroll chucks Ø 125 mm
€243.00 *

Harte Grundbacken Vierbacken-Drehfutter Ø 125 mm Hard master jaws for 4-jaw scroll chucks Ø 125 mm
€208.50 *
