Two-jaw lathe chuck DIN 6350 Ø 250 mm

€348.05 *
€414.18 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-6252-250
  • 8466 2091
  • 4049794038628
  • 28,3 kg
  • 0
Two-jaw lathe chuck DIN 6350 - centre mount - suitable for all types of lathes and different... more
Product information "Two-jaw lathe chuck DIN 6350 Ø 250 mm"

Two-jaw lathe chuck DIN 6350

- centre mount
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- especially suitable for holding multicornered and form turned elements,
  which cannot be clamped by 3- or 4-jaw lathe chucks
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set base jaws and soft reversible top jaws,
  wrench, fixing screws

Type: 2-jaw lathe chucks
Ø : 250 mm
DIN: 6350
Jaws: two-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Two-jaw lathe chuck DIN 6350 Ø 250 mm"

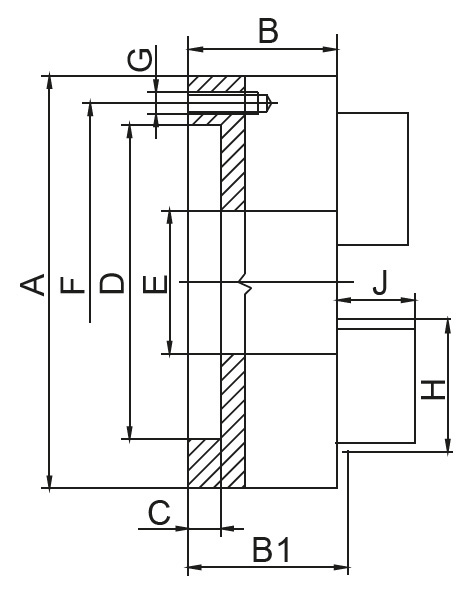

A (Ø) mm B mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX... more
A (Ø)
mm
B
mm
B1
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
RPM MAX
min -1
kg
160 64 69,3 4 125 42 140 6xM10 67 43 3000 10
200 75 79,3 4 160 55 176 6xM10 80 45 2500 17,5
250 85 88,8 5 200 76 224 6xM12 95 53 2000 29
315 94 99,1 5 260 103 286 6xM16 110 57 1500 50
400 105 113,8 5 330 136 362 6xM16 127 67 1000 85


Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
