Three-jaw lathe chuck DIN 6350 Ø 160 mm

€395.21 *
€470.30 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-8363-160
  • 8466 2091
  • 4049794039250
  • 10,55 kg
  • 7
Three-jaw lathe chuck DIN 6350 - centre mount, two-piece jaws - suitable for all types of... more
Product information "Three-jaw lathe chuck DIN 6350 Ø 160 mm"

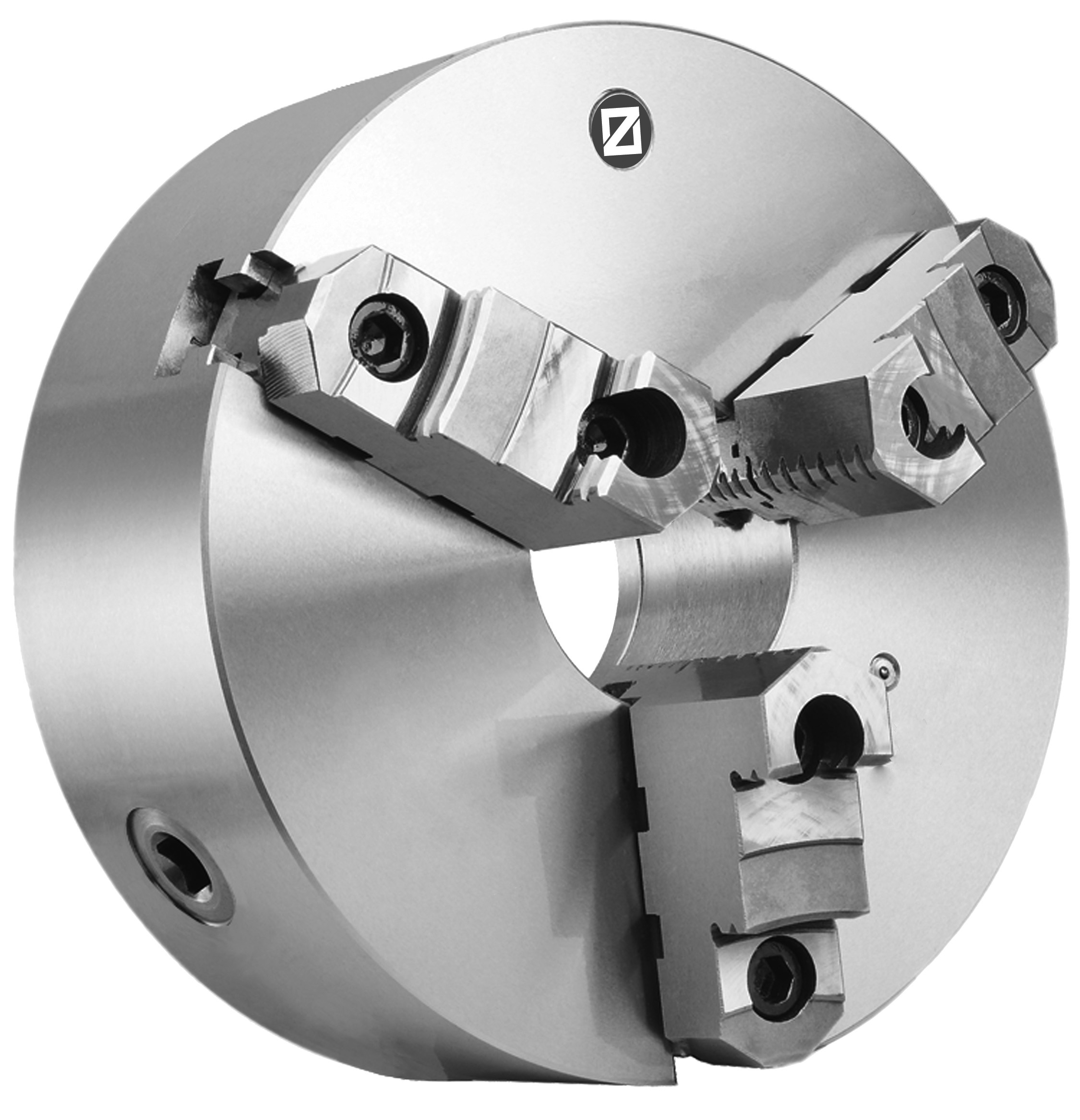

Three-jaw lathe chuck DIN 6350

- centre mount, two-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 160 mm
DIN: 6350
Jaws: two-piece jaws
Material: Steel
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 160 mm"

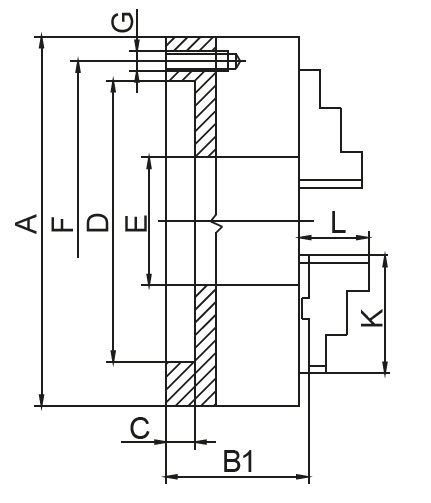

A (Ø) mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM MAX... more
A (Ø)
mm
B1
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
RPM MAX
min -1
kg
125 66,3 4 95 35,5 108 3xM8 56 40 4800 5
160 72,8 4 125 42 140 6xM10 67 43 4500 10
200 82,8 4 160 55 176 6xM10 80 45 4000 17,5
250 92,8 5 200 76 224 6xM12 95 53 3500 29
315 101,3 5 260 103 286 6xM16 110 57 2800 50
400 116,8 5 330 136 362 6xM16 127 67 2000 85
500 129,8 5 420 190 458 6xM16 127 79 1200 145
630 140,3 7 545 252 586 6xM16 127 87 1000 250
800 161,3 20 450 320 368,3 127 87 450 402

Inkl. Je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
