Three-jaw lathe chuck DIN 6350 Ø 200 mm

€295.63 *
€351.80 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-6363-200
  • 8466 2091
  • 4049794039090
  • 14,9 kg
  • 0
Three-jaw lathe chuck DIN 6350 - centre mount, two-piece jaws - suitable for all types of... more
Product information "Three-jaw lathe chuck DIN 6350 Ø 200 mm"

Three-jaw lathe chuck DIN 6350

- centre mount, two-piece jaws
- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from cast iron
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing screws

Type: 3-jaw lathe chucks
Ø : 200 mm
DIN: 6350
Jaws: two-piece jaws
Material: Cast iron
Make: Zentra
Related links to "Three-jaw lathe chuck DIN 6350 Ø 200 mm"

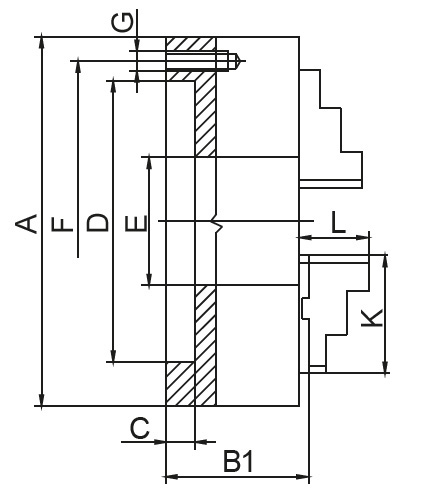

A (Ø) mm B1 mm C mm D mm E mm F mm G mm H mm J mm RPM  MAX min -1... more
A (Ø)
mm
B1
mm
C
mm
D
mm
E
mm
F
mm
G
mm
H
mm
J
mm
RPM MAX
min -1
kg
125 60,8 4 95 32 108 3xM8 56 40 3200 5
160 69,3 4 125 42 140 6xM10 67 43 3000 10
200 79,8 4 160 55 176 6xM10 80 45 2500 17,5
250 88,8 5 200 76 224 6xM12 95 53 2000 29
315 99,1 5 260 103 286 6xM16 110 57 1500 50
400 113,8 5 330 136 362 6xM16 127 67 1000 85
500 130,8 5 420 190 458 6xM16 127 79 700 145
630 146,3 7 545 252 586 6xM16 127 87 500 250
800 170,3 20 450 320 368,3 127 87 300 402

Inkl. Je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
