- Order number: ZE-8369-204
- Customs tariff number: 8466 2091
- European article number: 4049794040744
- Weight: 19,3 kg
- In stock: 0
Three-jaw lathe chuck DIN 55029 Ø 200 mm
- according to DIN 55029 (Camlock), two-piece jaws... more
Product information "Three-jaw lathe chuck DIN 55029 Ø 200 mm, Taper 4"
Three-jaw lathe chuck DIN 55029 Ø 200 mm
- according to DIN 55029 (Camlock), two-piece jaws
- suitable for all types of lathes and different kinds of milling,
drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
wrench, fixing bolts
Type: | 3-jaw lathe chucks |
Ø : | 200 mm |
DIN: | 55029 |
Taper: | 4 |
Jaws: | two-piece jaws |
Material: | Steel |
Make: | Zentra |
Related links to "Three-jaw lathe chuck DIN 55029 Ø 200 mm, Taper 4"

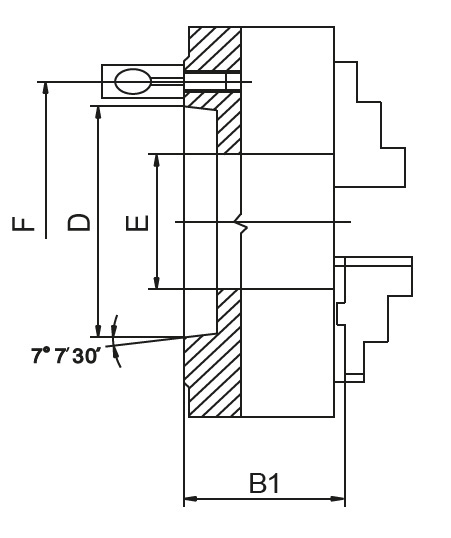

Ø mm
KK / Taper
B1 mm
D mm
E mm
F mm
RPM MAX min -1
kg
125... more
Ø mm |
KK / Taper |
B1 mm |
D mm |
E mm |
F mm |
RPM MAX min -1 |
kg |
125 | 3 | 64,8 | 54 | 35,5 | 70,6 | 4800 | 5 |
125 | 4 | 64,8 | 63,5 | 35,5 | 82,6 | 4800 | 5 |
160 | 3 | 72,8 | 54 | 42 | 70,6 | 4500 | 9 |
160 | 4 | 72,8 | 63,5 | 42 | 82,6 | 4500 | 9 |
160 | 5 | 72,8 | 82,6 | 42 | 104,8 | 4500 | 9 |
200 | 4 | 82,8 | 63,5 | 55 | 82,6 | 4000 | 19 |
200 | 5 | 82,8 | 82,6 | 55 | 104,8 | 4000 | 19 |
200 | 6 | 82,8 | 106,4 | 55 | 133,4 | 4000 | 19 |
250 | 6 | 92,8 | 106,4 | 76 | 133,4 | 3500 | 32 |
250 | 8 | 92,8 | 139,7 | 76 | 171,4 | 3500 | 32 |
315 | 6 | 101,3 | 106,4 | 103 | 133,4 | 2800 | 51 |
315 | 8 | 101,3 | 139,7 | 103 | 171,4 | 2800 | 51 |
315 | 11 | 145 | 196,9 | 103 | 235 | 2800 | 51 |
400 | 8 | 116,8 | 139,7 | 136 | 171,4 | 2000 | 101 |
400 | 11 | 116,8 | 196,9 | 136 | 235 | 2000 | 101 |
Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsbolzen / Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing bolts |
|||||||
Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
