Three-jaw lathe chuck DIN 55029 Ø 125 mm, Taper 4

€505.30 *
€601.31 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-8369-124
  • 8466 2091
  • 4049794040706
  • 5,8 kg
  • 1
Three-jaw lathe chuck DIN 55029 Ø 125 mm - according to DIN 55029 (Camlock), two-piece jaws... more
Product information "Three-jaw lathe chuck DIN 55029 Ø 125 mm, Taper 4"

Three-jaw lathe chuck DIN 55029 Ø 125 mm

- according to DIN 55029 (Camlock), two-piece jaws

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- incl. 1 set each of hardened base jaws and reversible top jaws,
  wrench, fixing bolts

Related links to "Three-jaw lathe chuck DIN 55029 Ø 125 mm, Taper 4"

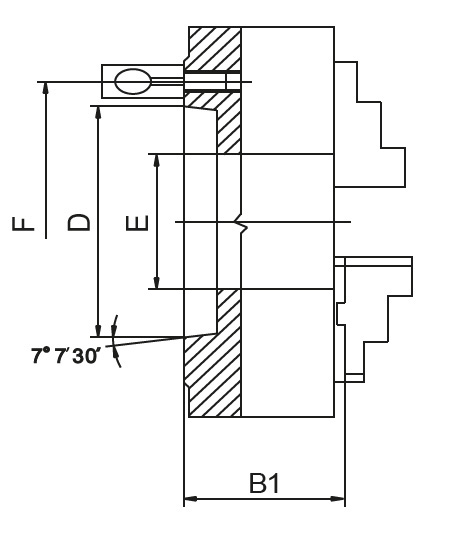

Ø mm KK / Taper B1 mm D mm E mm F mm RPM  MAX min -1 kg 125... more
Ø
mm
KK /
Taper
B1
mm
D
mm
E
mm
F
mm
RPM MAX
min -1
kg
125 3 64,8 54 35,5 70,6 4800 5
125 4 64,8 63,5 35,5 82,6 4800 5
160 3 72,8 54 42 70,6 4500 9
160 4 72,8 63,5 42 82,6 4500 9
160 5 72,8 82,6 42 104,8 4500 9
200 4 82,8 63,5 55 82,6 4000 19
200 5 82,8 82,6 55 104,8 4000 19
200 6 82,8 106,4 55 133,4 4000 19
250 6 92,8 106,4 76 133,4 3500 32
250 8 92,8 139,7 76 171,4 3500 32
315 6 101,3 106,4 103 133,4 2800 51
315 8 101,3 139,7 103 171,4 2800 51
315 11 145 196,9 103 235 2800 51
400 8 116,8 139,7 136 171,4 2000 101
400 11 116,8 196,9 136 235 2000 101

Inkl. je 1 Satz gehärteter Grund- und Umkehraufsatzbacken, Spannschlüssel, Befestigungsbolzen /
Incl. 1 set each of hardened base jaws and reversible top jaws, wrench, fixing bolts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
