Four-jaw lathe chuck 160 mm DIN 6350 drilled

€315.86 *
€375.87 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • ZE-6454-161
  • 8466 2091
  • 4049794079232
  • 10,3 kg
  • 0
Four-jaw lathe chuck Ø 160 mm, cast iron DIN 6350, one-piece jaws, drilled from front -... more
Product information "Four-jaw lathe chuck 160 mm DIN 6350 drilled"

Four-jaw lathe chuck Ø 160 mm, cast iron DIN 6350,
one-piece jaws, drilled from front

- centre mount according to DIN 6350
- drilled on pitch circle "F", 3 x 120°
- chuck body made from cast iron
- one-piece jaws
- scroll plate is drop forged of fine-alloy steel,
  and case hardened
- guide ways and wear surfaces ground
- suitable for all types of lathes and different kinds of
  milling, drilling and CNC devices

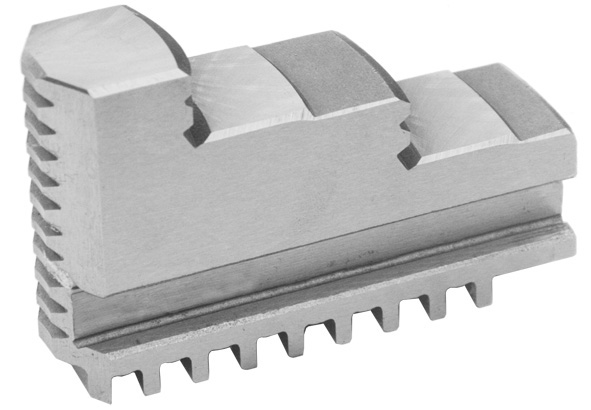

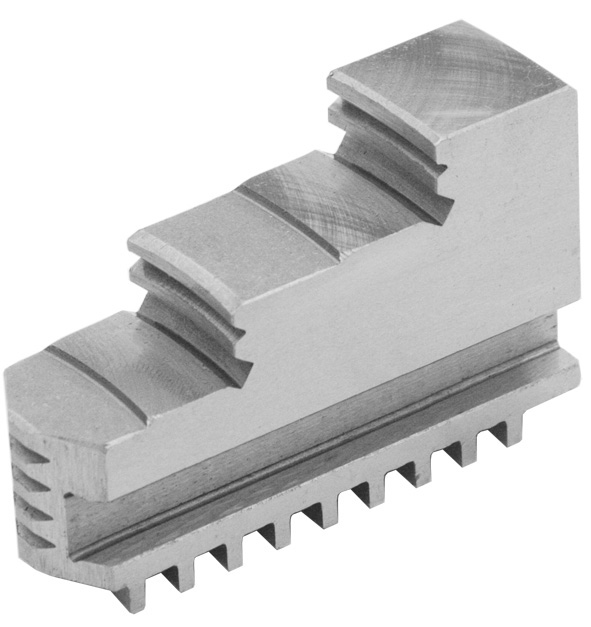

- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Related links to "Four-jaw lathe chuck 160 mm DIN 6350 drilled"

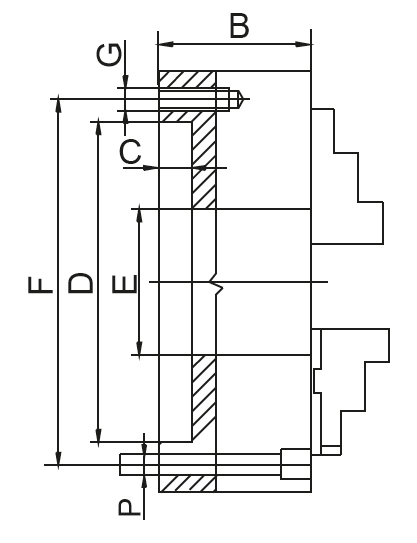

A (Ø) mm B mm C mm D mm E mm F mm G mm P Für Schrauben / for screws H mm... more
A (Ø)
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
P
Für Schrauben / for screws
H
mm
J
mm
RPM MAX
min -1
kg
125 56 4 95 32 108 3xM8 3xM8 51 20 3200 5
160 64 4 125 42 140 6xM10 3xM10 70 32 3000 10
200 75 4 160 55 176 6xM10 3xM10 85 29 2500 16,6
250 85 5 200 76 224 6xM12 3xM12 105 34 2000 29

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsschrauben /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing screws

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
