Four-jaw lathe chuck DIN 55027 Ø 160 mm, Taper 5

€570.02 *
€678.32 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • ZE-8457-165
  • 8466 2091
  • 4049794041772
  • 12,3 kg
  • 6
Four-jaw lathe chuck DIN 55027 Ø 160 mm - according to DIN 55027, one-piece jaws -... more
Product information "Four-jaw lathe chuck DIN 55027 Ø 160 mm, Taper 5"

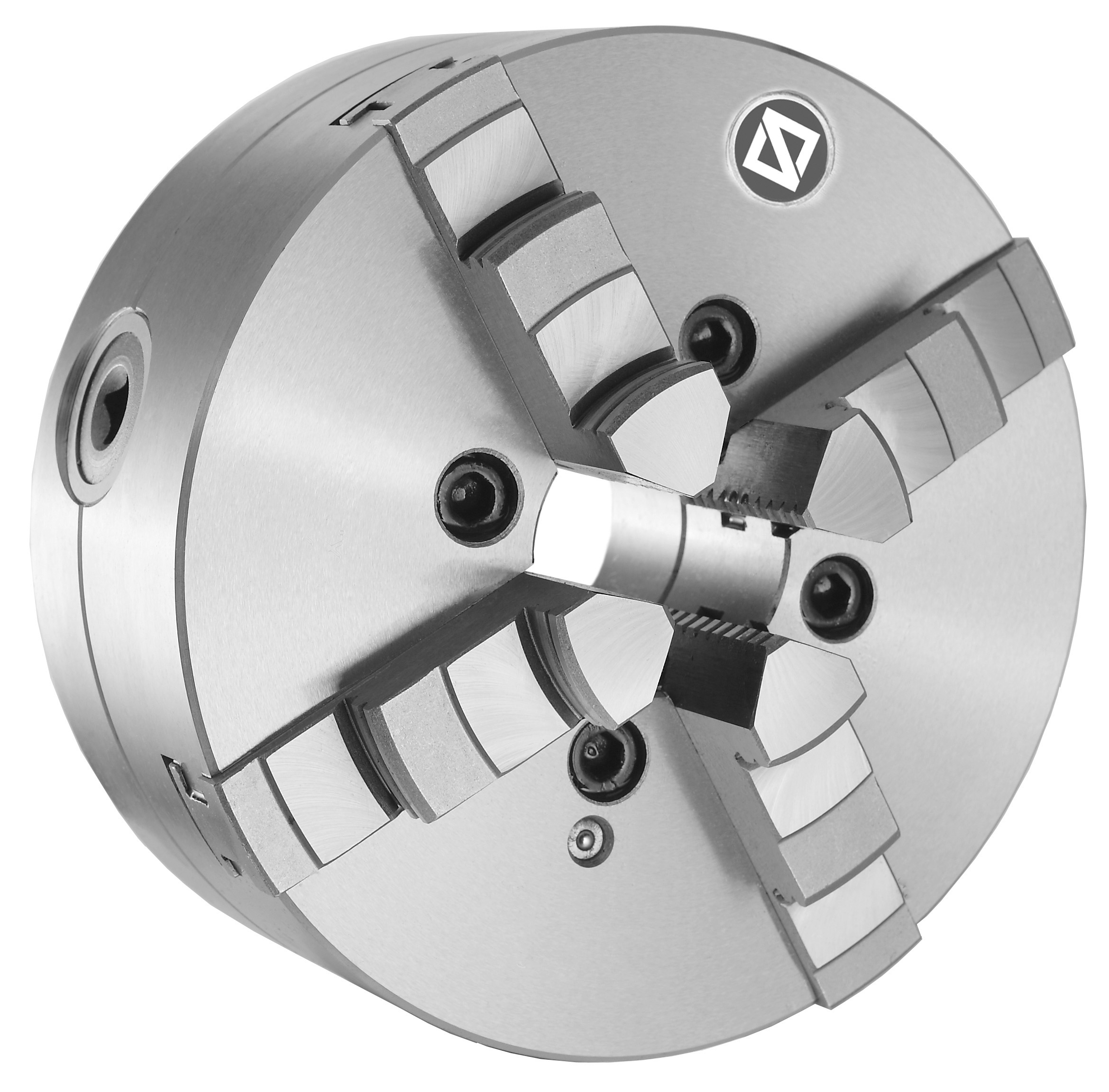

Four-jaw lathe chuck DIN 55027 Ø 160 mm

- according to DIN 55027, one-piece jaws

- suitable for all types of lathes and different kinds of milling,
  drilling and CNC devices
- homogeneous clamping force by self-centering clamping jaws,
  high concentricity
- chuck body made from steel
- guide ways and wear surfaces ground
- scroll plate is drop forged of fine-alloy steel,
  and case hardened

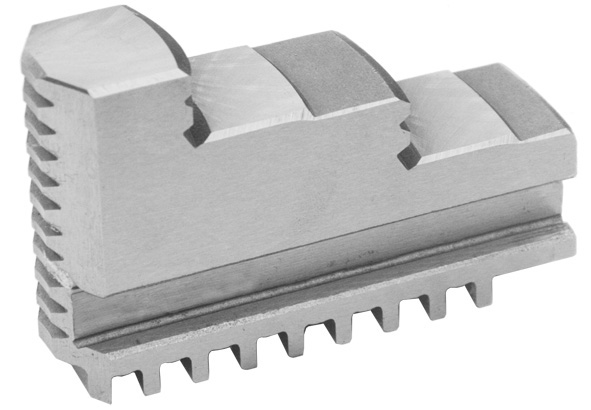

- incl. 1 set each of solid jaws internally / externally stepped,
  wrench, fixing screws

Type: 4-jaw lathe chucks
Ø : 160 mm
DIN: 55027
Taper: 5
Jaws: one-piece jaws
Material: Steel
Make: Zentra
Related links to "Four-jaw lathe chuck DIN 55027 Ø 160 mm, Taper 5"

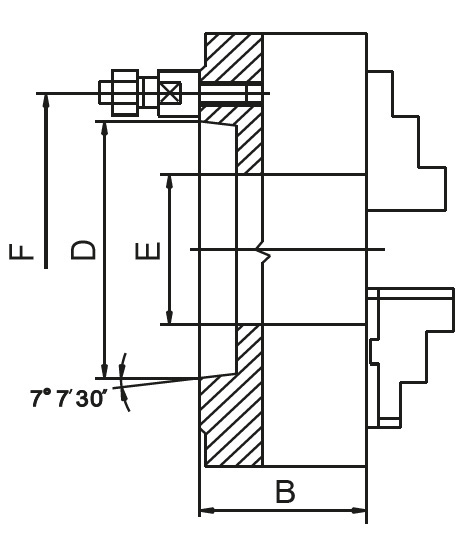

Ø mm KK / Taper B mm D mm E mm F mm RPM  MAX... more
Ø
mm
KK /
Taper
B
mm
D
mm
E
mm
F
mm
RPM MAX
min -1
kg
125 3 59,5 54 35,5 75 4800 5
125 4 59,5 63,5 35,5 85 4800 5
160 4 68 63,5 42 85 4500 9
160 5 68 82,6 42 104,8 4500 9
200 4 78 63,5 55 85 4000 19
200 5 78 82,6 55 104,8 4000 19
200 6 78 106,4 55 133,4 4000 19
250 6 89 106,4 76 133,4 3500 32
250 8 89 139,7 76 171,4 3500 32
315 6 96,2 106,4 103 133,4 2800 51
315 8 96,2 139,7 103 171,4 2800 51
315 11 96,2 196,9 103 235 2800 51
400 8 108 139,7 136 171,4 2000 101
400 11 108 196,9 136 235 2000 101

Inkl. je 1 Satz Dreh- und Bohrbacken, Spannschlüssel, Befestigungsbolzen /
Incl. 1 set each of solid jaws internally / externally stepped, wrench, fixing bolts

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
