Jaw turning rings for 4-jaw chucks, Ø 200-500 mm

Jaw turning rings for 4-jaw chucks, Ø 200-500 mm
Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • 24-41508-XL
  • 8466 2091
  • 1
  • 4049794072707
  • 27 kg
  • 0
Jaw turning rings for 4-jaw lathe chucks, up to Ø 500 mm - set, size: XL-4 - range: Ø =... more
Product information "Jaw turning rings for 4-jaw chucks, Ø 200-500 mm"

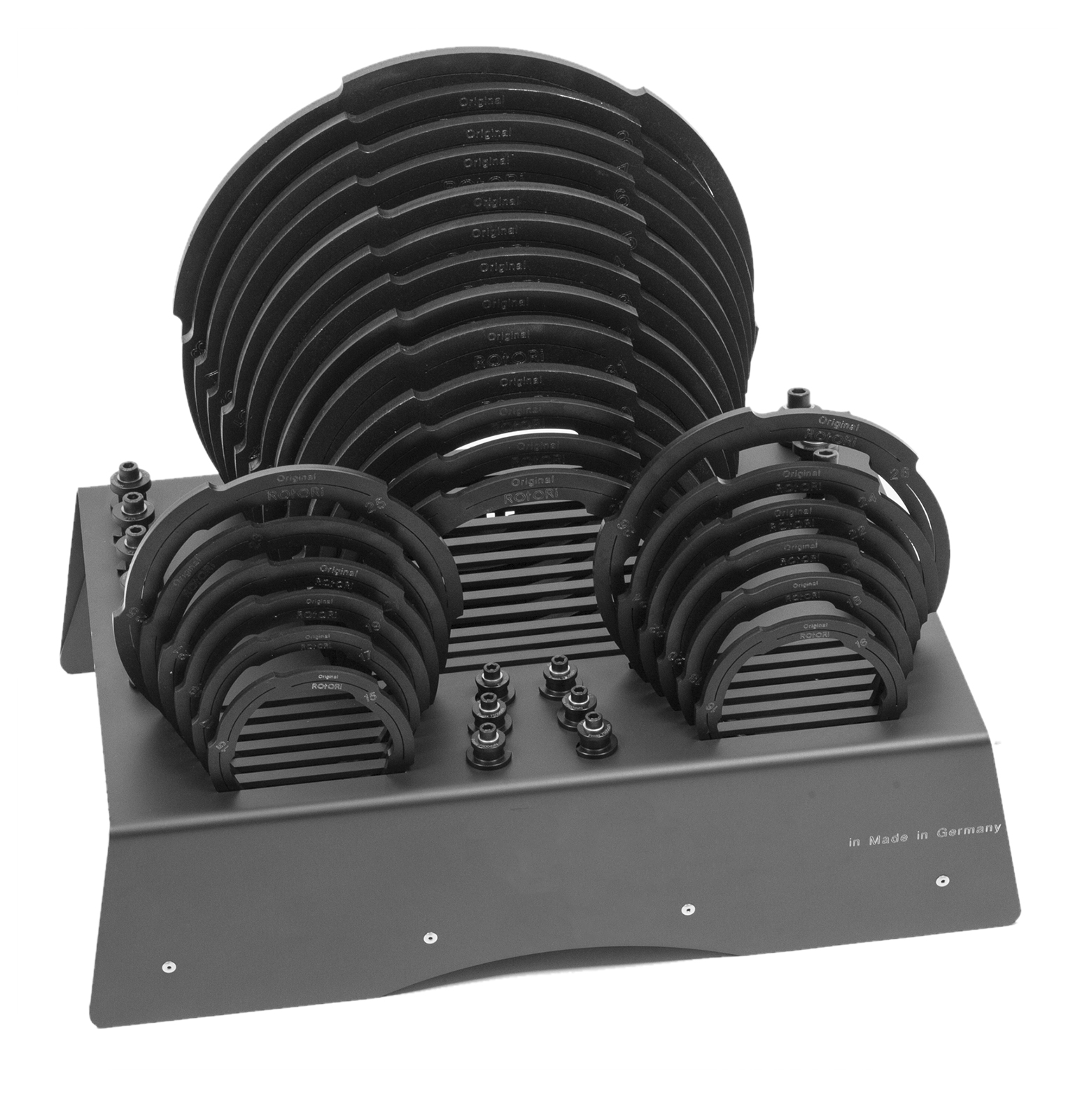

Jaw turning rings for 4-jaw lathe chucks, up to Ø 500 mm

- set, size: XL-4
- range: Ø = 200-500 mm
- rings: 15
- incl. clamping pins: 4 x M10 / 4 x M12 / 4 x M16

- internal and external clamping with only 1 ring
- infinitely adjustable clamping range for all chucks
- exact adjustment of boring diameter (1/10 mm precision)
- easy of handling
- less clamping jaws required
- reduced set up times

This set comprises individual rings from hardened
special-purpose steel each consisting of 3 curved segments (3 x 120°)
to be arranged both at the inner and outer circumference.
These patented rings allow to turn-out jaws to a
maximum precision. Thanks to an infinite adjustability it is
possible to remove an exact amount of material thus
saving set up time and costs.

Related links to "Jaw turning rings for 4-jaw chucks, Ø 200-500 mm"
Größe / Size Ringe / Rings Spannbolzen inkl. / incl. clamping pins... more
Größe /
Size
Ringe /
Rings
Spannbolzen inkl. /
incl. clamping pins
Arbeitsbereich /
Range
L-4 29* Je / each 4 x M8 / M10 / M12 Ø = 80-250 mm
XL-4 15** Je / each 4 x M10 / M12 / M16 Ø = 200-500 mm

* Ringe 6 mm / rings 6 mm
** 2 Ringe 6 mm, 13 Ringe 10 mm / 2 rings 6 mm, 13 rings 10 mm

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
