Jaw turning rings Premium (3-jaws) Ø 315-630 mm

Jaw turning rings Premium (3-jaws) Ø 315-630 mm
Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • 24-21508-XL
  • 8466 2091
  • 1
  • 4049794070307
  • 27 kg
  • 0
Jaw turning rings Premium for 3-jaw lathe chucks, up to Ø 630 mm - set premium version,... more
Product information "Jaw turning rings Premium (3-jaws) Ø 315-630 mm"

Jaw turning rings Premium for 3-jaw lathe chucks, up to Ø 630 mm

- set premium version, size: XL-3
- range: Ø = 315-630 mm
- rings: 10
- incl. clamping pins: 3 x M16 / 3 x M20
  Flexible, adjustable pins, which can compensate
  up to 1,5 mm of the bore.

- internal and external clamping with only 1 ring
- infinitely adjustable clamping range for all chucks
- exact adjustment of boring diameter (1/10 mm precision)
- easy of handling
- less clamping jaws required
- reduced set up times

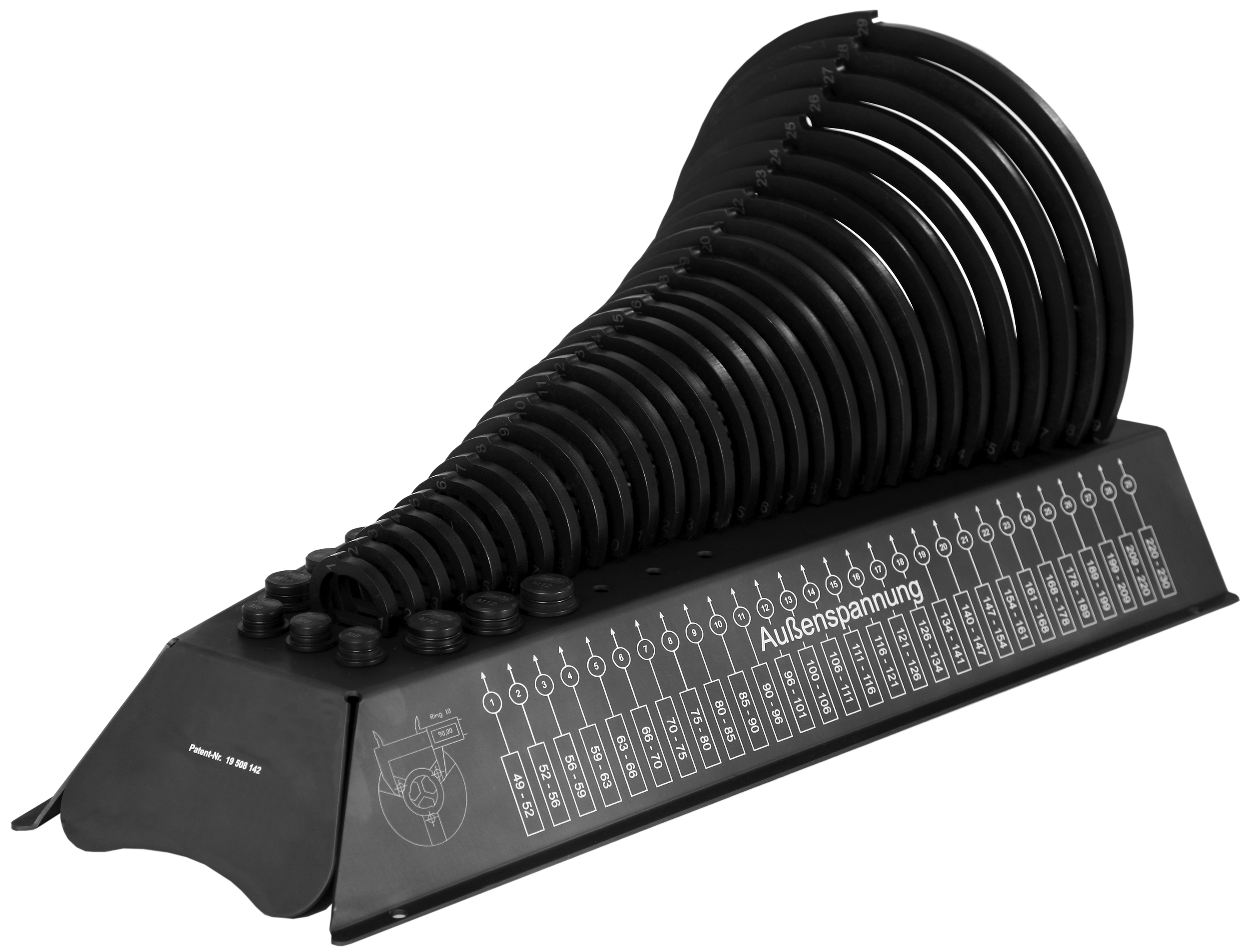

This set comprises individual rings from hardened
special-purpose steel each consisting of 3 curved segments (3 x 120°)
to be arranged both at the inner and outer circumference.
These patented rings allow to turn-out jaws to a
maximum precision. Thanks to an infinite adjustability it is
possible to remove an exact amount of material thus
saving set up time and costs.

Related links to "Jaw turning rings Premium (3-jaws) Ø 315-630 mm"
Ausführung / Version Größe / Size Ringe 6 mm / Rings 6 mm Ringe 10... more
Ausführung /
Version
Größe /
Size
Ringe 6 mm /
Rings 6 mm
Ringe 10 mm /
Rings 10 mm
Spannbolzen inkl. /
incl. Clamping pins
Arbeitsbereich /
Range
Standard S-3 20  - Je / each 3 x M8 / M10 Ø = 80 - 200 mm
Standard L-3 29  - Je / each 3 x M8 / M10 / M12 Ø = 80 - 250 mm
Standard LX-3 16 13 Je / each 3 x M10 / M12 / M16 Ø = 80 - 315 mm
Standard XL-3  - 10 Je / each 3 x M16 / M20 Ø = 315 - 630 mm
Premium S-3 20  - Je / each 3 x M8 / M10 Ø = 80 - 200 mm
Premium L-3 29  - Je / each 3 x M8 / M10 / M12 Ø = 80 - 250 mm
Premium LX-3 16 13 Je / each 3 x M10 / M12 / M16 Ø = 80 - 315 mm
Premium XL-3  - 10 Je / each 3 x M16 / M20 Ø = 315 - 630 mm

Weitere Spannbolzen auf Anfrage lieferbar /
Other clamping pins available upon request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
