Soft top jaws for 4-jaw scroll chucks Ø 800 mm

Preis auf Anfrage

Prices plus VAT plus shipping costs

Lieferzeit auf Anfrage
Preis jetzt anfragen
  • 398574380700
  • 84662091
  • 1
  • 22 kg
  • 0
Soft top jaws for Bison 4-jaw scroll chucks Ø 800 mm - material: steel - 4 pieces/set more
Product information "Soft top jaws for 4-jaw scroll chucks Ø 800 mm"

Soft top jaws
for Bison 4-jaw scroll chucks Ø 800 mm

- material: steel
- 4 pieces/set

Related links to "Soft top jaws for 4-jaw scroll chucks Ø 800 mm"

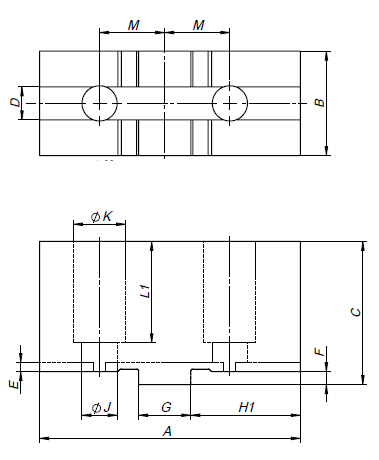

Futtergröße / Chuck size A B C D E F G H J K... more
Futtergröße /
Chuck size
A B C D E F G H J K L1 M kg pro Stück /
kg per piece
200 90 27,0 43,5 7,95 4 3,2 12,69 40 11 18 31,0 22,25 0,7
250 106 32,5 51,5 12,71 4 3,2 19,04 45 14 20 38,0 27,00 1,2
315 120 37,0 55,0 12,71 4 3,2 19,04 53 14 20 40,0 31,75 1,6
400 140 42,0 64,5 12,71 4 6,3 19,04 63 18 26 45,5 38,10 2,2
500 140 42,0 74,5 12,71 4 6,3 19,04 63 22 33 56,0 38,10 2,4
630 140 54,0 82,0 12,71 4 6,3 19,04 58 22 33 64,0 38,10 3,6
800 140 72,0 88,0 12,71 4 6,3 19,04 58 22 33 70,0 38,10 5,5

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
