Shell mill holder, HSK-A 63, Ø 16 mm / A 50 mm
Product number:
17-MS63A-16-50
Customs tariff number
8466 1038
European Article Number
4049794034385
Weight
1 kg
Stock:
0
Related links:
Request Item
Product information "Shell mill holder, HSK-A 63, Ø 16 mm / A 50 mm"
Shell mill holder, DIN 6357 HSK-A
- with enlarged collar diameter
- HSK 63A
- balanced G = 6,3 15.000 U/min.
- D: 16 mm
- A: 50 mm
| Size: | HSK-A 63 |
|---|---|
| Type: | Face mill holders |
| Ø : | 16 mm |

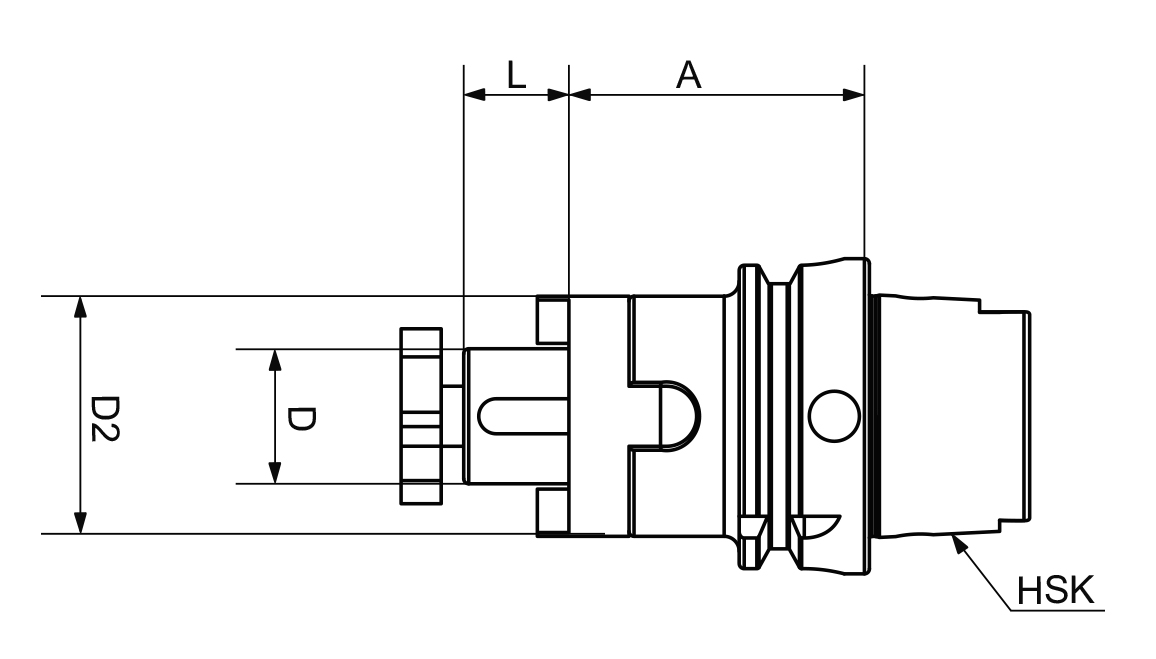

Technical Data
| Größe / Size |
D mm |
D2 mm |
L mm |
A mm |
| HSK-A 63 | 16 | 38 | 17 | 50 |
| HSK-A 63 | 16 | 38 | 17 | 100 |
| HSK-A 63 | 22 | 48 | 19 | 50 |
| HSK-A 63 | 22 | 48 | 19 | 100 |
| HSK-A 63 | 27 | 58 | 21 | 55 |
| HSK-A 63 | 27 | 58 | 21 | 100 |
| HSK-A 63 | 32 | 78 | 24 | 60 |
| HSK-A 63 | 32 | 78 | 24 | 100 |
| HSK-A 63 | 40 | 88 | 27 | 60 |
| HSK-A 63 | 40 | 88 | 27 | 100 |
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
Importer/Manufacturer:
Gedema GmbH
Berchumer Str. 74
58093 Hagen
Email: info@messwelt.com
Email: info@gedema.com
Items explicitly stating the manufacturer are excluded.
