End mill adapter, HSK-A 63, Ø 32 mm / A 110 mm
Product number:
17-WE63A-32-110
Customs tariff number
8466 1038
European Article Number
4049794034002
Weight
2,75 kg
Stock:
0
Related links:
Request Item

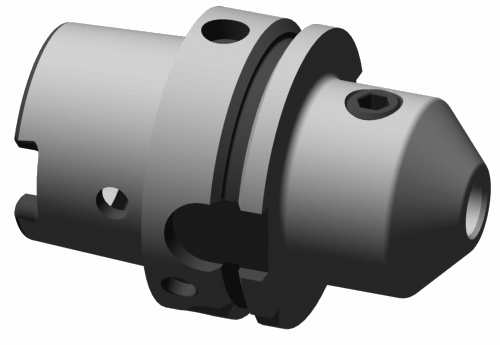

Product information "End mill adapter, HSK-A 63, Ø 32 mm / A 110 mm"
End mill adapter WELDON, DIN 69893 HSK-A
- HSK 63A
- balanced G = 6,3 15.000 U/min.
- D1: 32 mm
- A: 110 mm
| Size: | HSK-A 63 |
|---|---|
| Type: | End mill adaptors Weldon |
| Ø : | 32 mm |

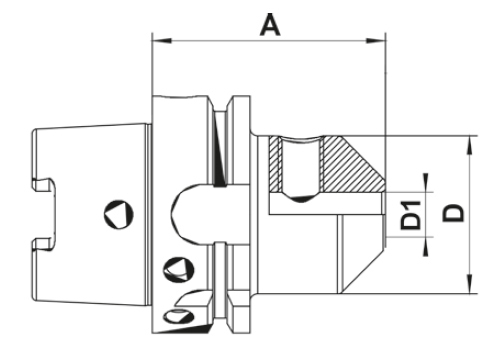

Technical Data
| Größe / Size |
D1 mm |
D mm |
A mm |
| HSK-A 63 | 6 | 25 | 65 |
| HSK-A 63 | 6 | 25 | 100 |
| HSK-A 63 | 8 | 28 | 65 |
| HSK-A 63 | 8 | 28 | 100 |
| HSK-A 63 | 10 | 35 | 65 |
| HSK-A 63 | 10 | 35 | 100 |
| HSK-A 63 | 12 | 42 | 80 |
| HSK-A 63 | 12 | 42 | 100 |
| HSK-A 63 | 16 | 48 | 80 |
| HSK-A 63 | 16 | 48 | 100 |
| HSK-A 63 | 18 | 50 | 80 |
| HSK-A 63 | 20 | 52 | 80 |
| HSK-A 63 | 20 | 52 | 100 |
| HSK-A 63 | 25 | 65 | 110 |
| HSK-A 63 | 32 | 72 | 110 |
| HSK-A 63 | 40 | 80 | 125 |
| Gewuchtet G 6,3 15.000 U/min. / Balanced G 6,3 5.000 U/min. |
|||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|||
