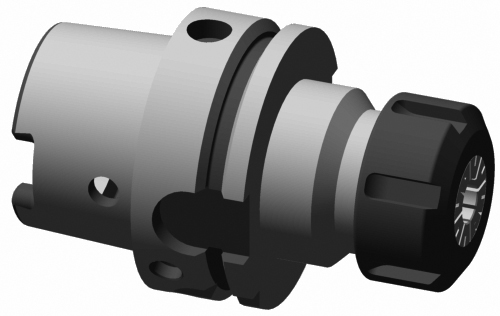

Collet chuck HSK-A 63, ER 40-120

€73.30 *
€87.23 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 17-SF63A-ER40-120
  • 8466 1038
  • 4049794033746
  • 1,8 kg
  • 2
Collet chuck ER, DIN 69893 HSK-A - HSK 63A - balanced G = 6,3 25.000 U/min. - for collet:... more
Product information "Collet chuck HSK-A 63, ER 40-120"

Collet chuck ER, DIN 69893 HSK-A

- HSK 63A
- balanced G = 6,3 25.000 U/min.
- for collet: ER40 (clamping range 3-26 mm)
- A: 120 mm



Related links to "Collet chuck HSK-A 63, ER 40-120"

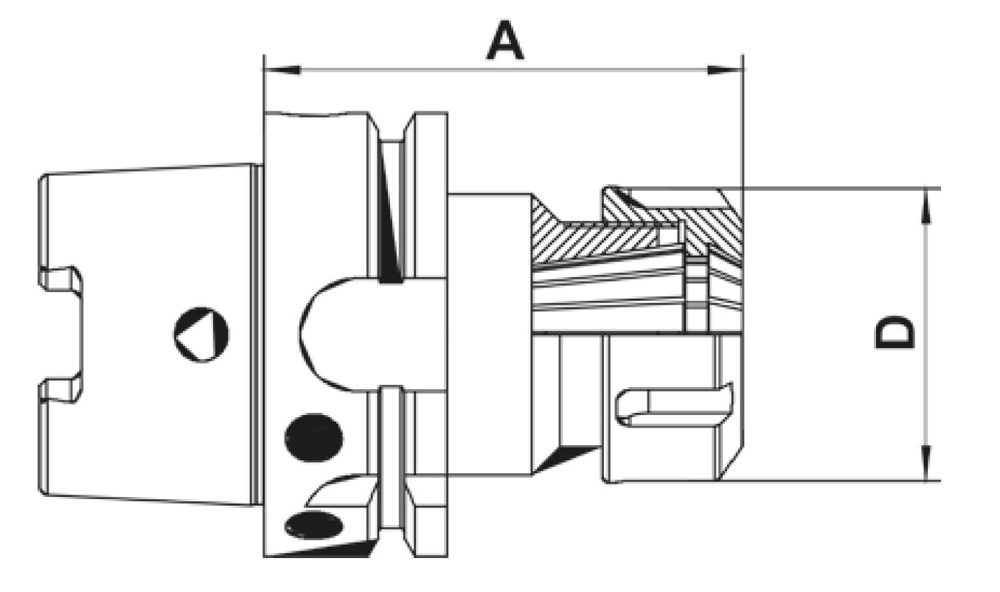

Größe / Size Für Spannzange / For collet D mm A mm HSK-A 63 ER16 (1-10) 28... more
Größe /
Size
Für Spannzange /
For collet
D
mm
A
mm
HSK-A 63 ER16 (1-10) 28 100
HSK-A 63 ER16 (1-10) 28 160
HSK-A 63 ER 25 (2-16) 42 100
HSK-A 63 ER 25 (2-16) 42 160
HSK-A 63 ER 32 (2-20) 50 100
HSK-A 63 ER 32 (2-20) 50 160
HSK-A 63 ER40 (3-26) 63 120
HSK-A 63 ER40 (3-26) 63 160

Gewuchtet G 6,3 25.000 U/min. /
Balanced G 6,3 25.000 U/min.

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
