Driven tool DIN 5480, VDI 30 ER 25, with IC

€1,074.67 *
€1,278.86 incl. VAT

Prices plus VAT plus shipping costs

Delivery time upon request

  • 47-80-G-30-25IK
  • 8466 1031
  • 4049794660652
  • 1,85 kg
  • 0
Driven tool, DIN 5480, straight - for SAUTER turrets - coolant pressure up to 20 bar -... more
Product information "Driven tool DIN 5480, VDI 30 ER 25, with IC"

Driven tool, DIN 5480, straight

- for SAUTER turrets
- coolant pressure up to 20 bar
- high-precision capsulated bearings
- suitable for high spindle speeds

- VDI 30
- ER 25
- with internal cooling

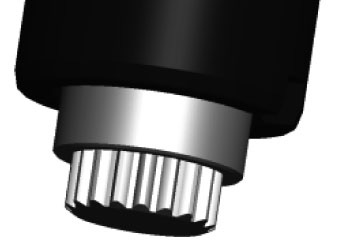

For turret: Sauter DIN 5480
Type: straight
VDI: 30
Collet: ER 25
Internal cooling: with
Related links to "Driven tool DIN 5480, VDI 30 ER 25, with IC"

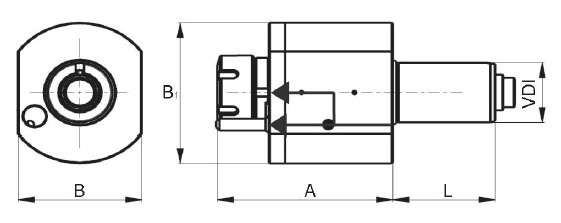

VDI SZ / Collet IK  / IC A mm L mm B mm B1 mm Übersetzung / Ratio... more
VDI SZ /
Collet
IK  /
IC
A
mm
L
mm
B
mm
B1
mm
Übersetzung /
Ratio
Max. Drehmoment /
Max. torque Nm
Drehzahl /
Speed min-1
30 ER 25   - 87 55 62 69  1 : 1 28 6000
30 ER 25    ✓ 87 55 62 69  1 : 1 28 6000
40 ER 25  - 120 63 76 94  1 : 1 50 6000
40 ER 25    ✓ 120 63 76 94  1 : 1 50 6000
40 ER 32  - 120 63 76 94  1 : 1 50 6000
40 ER 32    ✓ 120 63 76 94  1 : 1 50 6000

Angetriebene Werkzeuge mit VDI 50 auf Anfrage lieferbar /
Driven tools with VDI 50 available on request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved
