Deburring tool X-Grat Ø 7,54 - 7,95 mm, XG-7,54
€140.18*
€166.81 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
1E-XG-7,54
Customs tariff number
8207 5060
European Article Number
4049794023723
Weight
0,03 kg
Stock:
2
Related links:
Request Item
Product information "Deburring tool X-Grat Ø 7,54 - 7,95 mm, XG-7,54"

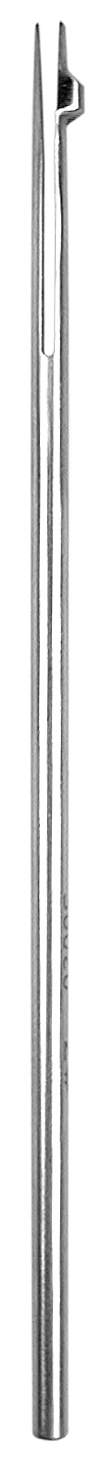

Deburring tool X-Grat Ø 7,54 - 7,95 mm,
bore-hole deburring on both sides in a single operation
- material: HSS
- no spindle stop required!
- chamfering in inaccessible locations (eg. hollow objects)
- no turning of work piece required
- simple and rugged design
- most suitable for mass production
- one piece construction allows cutting chips to clear easily
- readly adaptable to all kinds of production machines
- forward deburring angle: 45°
- reverse deburring angle: 33°

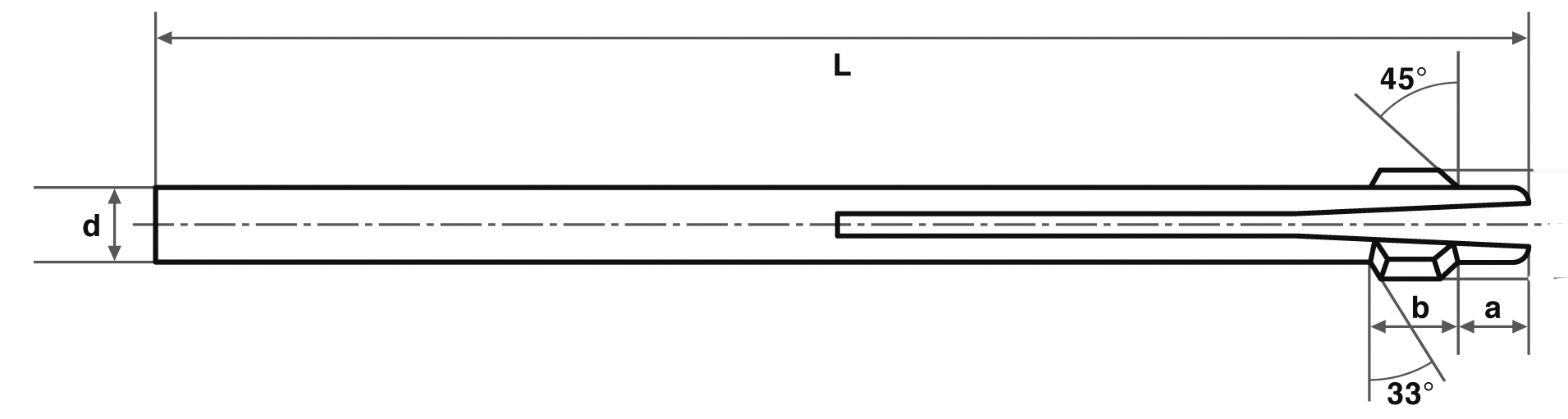

Technical Data
| Größenbereich / Range of hole size mm |
d mm |
L mm |
a mm |
b mm |
| 5,56 - 5,94 | 5,54 | 101,6 | 6,48 | 6,22 |
| 5,94 - 6,35 | 5,92 | 101,6 | 6,48 | 6,22 |
| 6,35 - 6,75 | 6,32 | 101,6 | 6,48 | 6,22 |
| 6,76 - 7,14 | 6,73 | 101,6 | 6,48 | 6,22 |
| 7,13 - 7,54 | 7,11 | 101,6 | 6,48 | 6,22 |
| 7,54 - 7,95 | 7,52 | 101,6 | 7,24 | 6,48 |
| 7,95 - 8,33 | 7,92 | 101,6 | 7,24 | 6,48 |
| 8,33 - 8,71 | 8,31 | 101,6 | 7,24 | 6,48 |
| 8,71 - 9,11 | 8,69 | 101,6 | 7,24 | 6,48 |
| 9,11 - 9,52 | 9,09 | 101,6 | 7,24 | 6,48 |
| 9,52 - 9,90 | 9,50 | 112,7 | 8,00 | 6,22 |
| 9,90 - 10,31 | 9,88 | 112,7 | 8,00 | 6,22 |
| Andere Abmessungen und TIN-beschichtete Ausführungen auf Anfrage erhältlich / Other sizes and TIN-coated version available upon request |
||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
| Größe / size |
UPM / RPM |
Vorschub / Feed rate mm |
| 1,0 - 5,0 | 1750 | 0,02 - 0,10 |
| 6,0 - 9,0 | 800 - 1000 | 0,02 - 0,15 |
| ≥ 10 | 600 - 650 | 0,05 - 0,20 |
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
