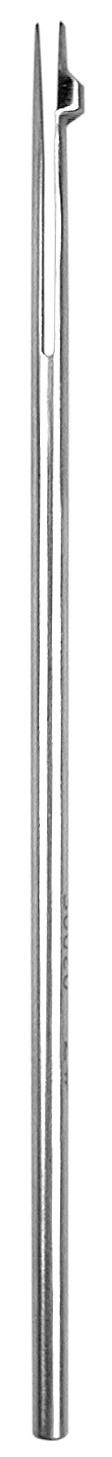

Deburring tool X-Grat Ø 5,94 - 6,35 mm, XG-5,94

€130.82 *
€155.68 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 1E-XG-5,94
  • 8207 5060
  • 4049794023686
  • 0,02 kg
  • 4
Deburring tool X-Grat Ø 5,94 - 6,35 mm, bore-hole deburring on both sides in a single... more
Product information "Deburring tool X-Grat Ø 5,94 - 6,35 mm, XG-5,94"

Deburring tool X-Grat Ø 5,94 - 6,35 mm,
bore-hole deburring on both sides in a single operation

- material: HSS
- no spindle stop required!
- chamfering in inaccessible locations (eg. hollow objects)
- no turning of work piece required
- simple and rugged design
- most suitable for mass production
- one piece construction allows cutting chips to clear easily
- readly adaptable to all kinds of production machines
- forward deburring angle: 45°
- reverse deburring angle: 33°

Related links to "Deburring tool X-Grat Ø 5,94 - 6,35 mm, XG-5,94"

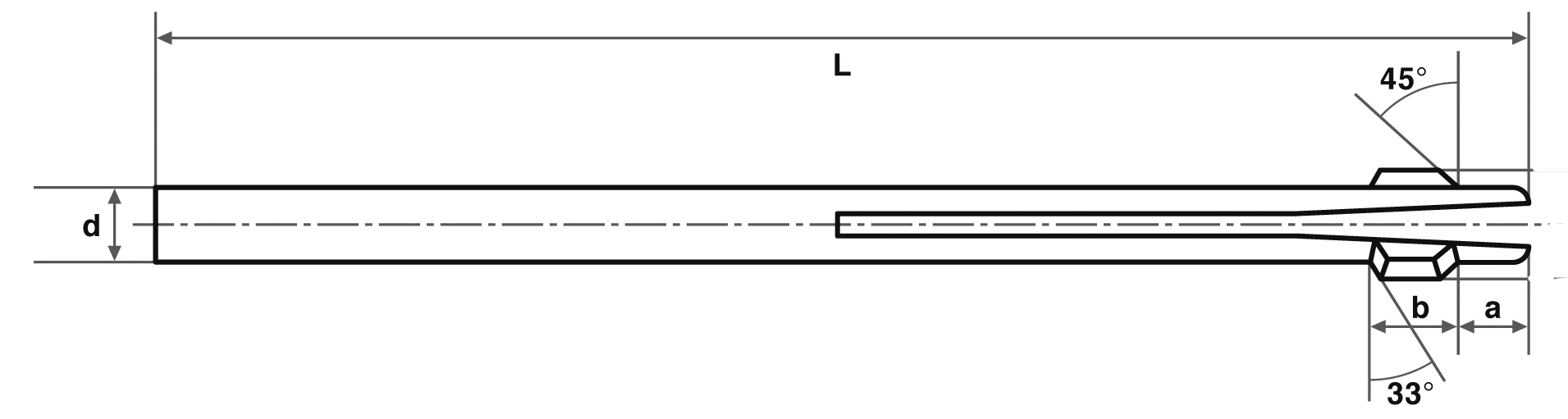

Größenbereich / Range of hole size mm d mm L mm a mm b mm 5,56 - 5,94 5,54... more
Größenbereich /
Range of hole size
mm
d
mm
L
mm
a
mm
b
mm
5,56 - 5,94 5,54 101,6 6,48 6,22
5,94 - 6,35 5,92 101,6 6,48 6,22
6,35 - 6,75 6,32 101,6 6,48 6,22
6,76 - 7,14 6,73 101,6 6,48 6,22
7,13 - 7,54 7,11 101,6 6,48 6,22
7,54 - 7,95 7,52 101,6 7,24 6,48
7,95 - 8,33 7,92 101,6 7,24 6,48
8,33 - 8,71 8,31 101,6 7,24 6,48
8,71 - 9,11 8,69 101,6 7,24 6,48
9,11 - 9,52 9,09 101,6 7,24 6,48
9,52 - 9,90 9,50 112,7 8,00 6,22
9,90 - 10,31 9,88 112,7 8,00 6,22

Andere Abmessungen und TIN-beschichtete Ausführungen auf Anfrage erhältlich /
Other sizes and TIN-coated version available upon request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved



Größe /
size
UPM /
RPM
Vorschub /
Feed rate
mm
1,0 - 5,0 1750 0,02 - 0,10
6,0 - 9,0 800 - 1000 0,02 - 0,15
≥ 10 600 - 650 0,05 - 0,20
