Deburring tool X-Grat Ø 11,51 - 11,88 mm, XG-11,51
€173.81*
€206.83 incl. Vat.
Available, delivery time: 1-3 workdays
Product number:
1E-XG-11,51
Customs tariff number
8207 5060
European Article Number
4049794023822
Weight
0,08 kg
Stock:
1
Related links:
Request Item
Product information "Deburring tool X-Grat Ø 11,51 - 11,88 mm, XG-11,51"

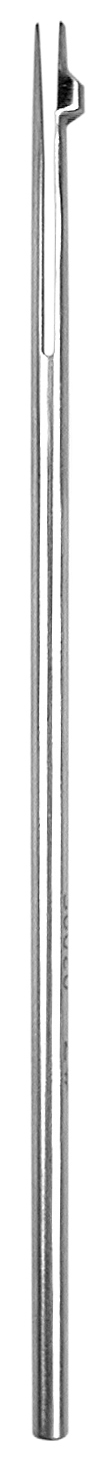

Deburring tool X-Grat Ø 11,51 - 11,88 mm,
bore-hole deburring on both sides in a single operation
- material: HSS
- no spindle stop required!
- chamfering in inaccessible locations (eg. hollow objects)
- no turning of work piece required
- simple and rugged design
- most suitable for mass production
- one piece construction allows cutting chips to clear easily
- readly adaptable to all kinds of production machines
- forward deburring angle: 45°
- reverse deburring angle: 33°

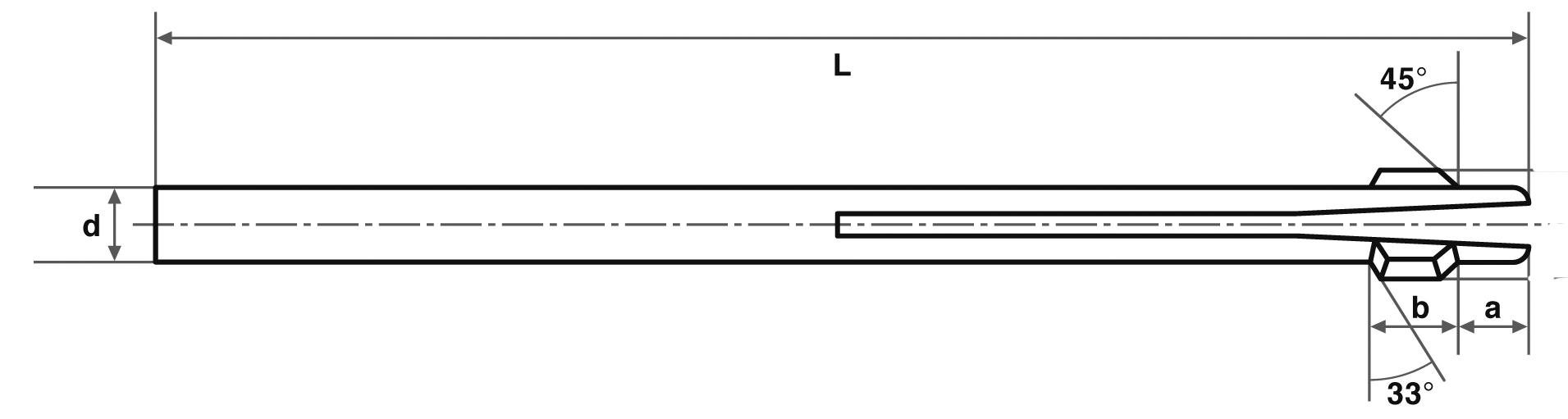

Technical Data
| Größenbereich / Range of hole size mm |
d mm |
L mm |
a mm |
b mm |
| 10,31 - 10,72 | 10,29 | 112,7 | 8,00 | 6,22 |
| 10,69 - 11,13 | 10,67 | 112,7 | 8,00 | 6,22 |
| 11,10 - 11,51 | 11,07 | 139,7 | 8,76 | 6,99 |
| 11,51 - 11,88 | 11,48 | 139,7 | 8,76 | 6,99 |
| 11,88 - 12,29 | 11,86 | 139,7 | 8,76 | 6,99 |
| 12,29 - 12,70 | 12,26 | 139,7 | 8,76 | 6,99 |
| 12,70 - 13,08 | 12,67 | 177,8 | 9,78 | 7,75 |
| 13,08 - 13,48 | 13,05 | 177,8 | 9,78 | 7,75 |
| 13,49 - 13,89 | 13,46 | 177,8 | 9,78 | 7,75 |
| 13,87 - 14,30 | 13,84 | 177,8 | 9,78 | 7,75 |
| 14,30 - 14,68 | 14,27 | 190,5 | 10,54 | 10,29 |
| 14,68 - 15,09 | 14,65 | 190,5 | 10,54 | 10,29 |
| 15,09 - 15,47 | 15,06 | 190,5 | 10,54 | 11,05 |
| 15,47 - 15,87 | 15,44 | 190,5 | 10,54 | 11,05 |
| 15,87 - 16,28 | 15,84 | 212,6 | 11,3 | 11,05 |
| Andere Abmessungen und TIN-beschichtete Ausführungen auf Anfrage erhältlich / Other sizes and TIN-coated version available upon request |
||||
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
||||
| Größe / size |
UPM / RPM |
Vorschub / Feed rate mm |
| 1,0 - 5,0 | 1750 | 0,02 - 0,10 |
| 6,0 - 9,0 | 800 - 1000 | 0,02 - 0,15 |
| ≥ 10 | 600 - 650 | 0,05 - 0,20 |
