Deburring tool X-Grat Ø 1,3 - 1,4 mm, XG-1,3

€234.14 *
€278.63 incl. VAT

Prices plus VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays

  • 1E-XG-1,3
  • 8207 5060
  • 4049794023495
  • 0,01 kg
  • 3
Deburring tool X-Grat Ø 1,3 - 1,4 mm, bore-hole deburring on both sides in a single operation... more
Product information "Deburring tool X-Grat Ø 1,3 - 1,4 mm, XG-1,3"

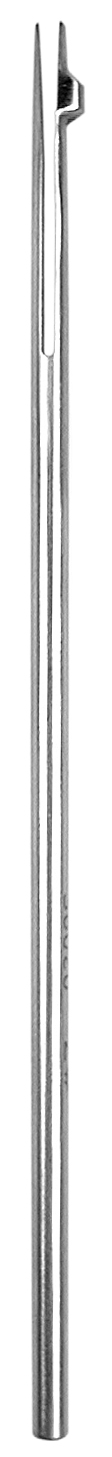

Deburring tool X-Grat Ø 1,3 - 1,4 mm,

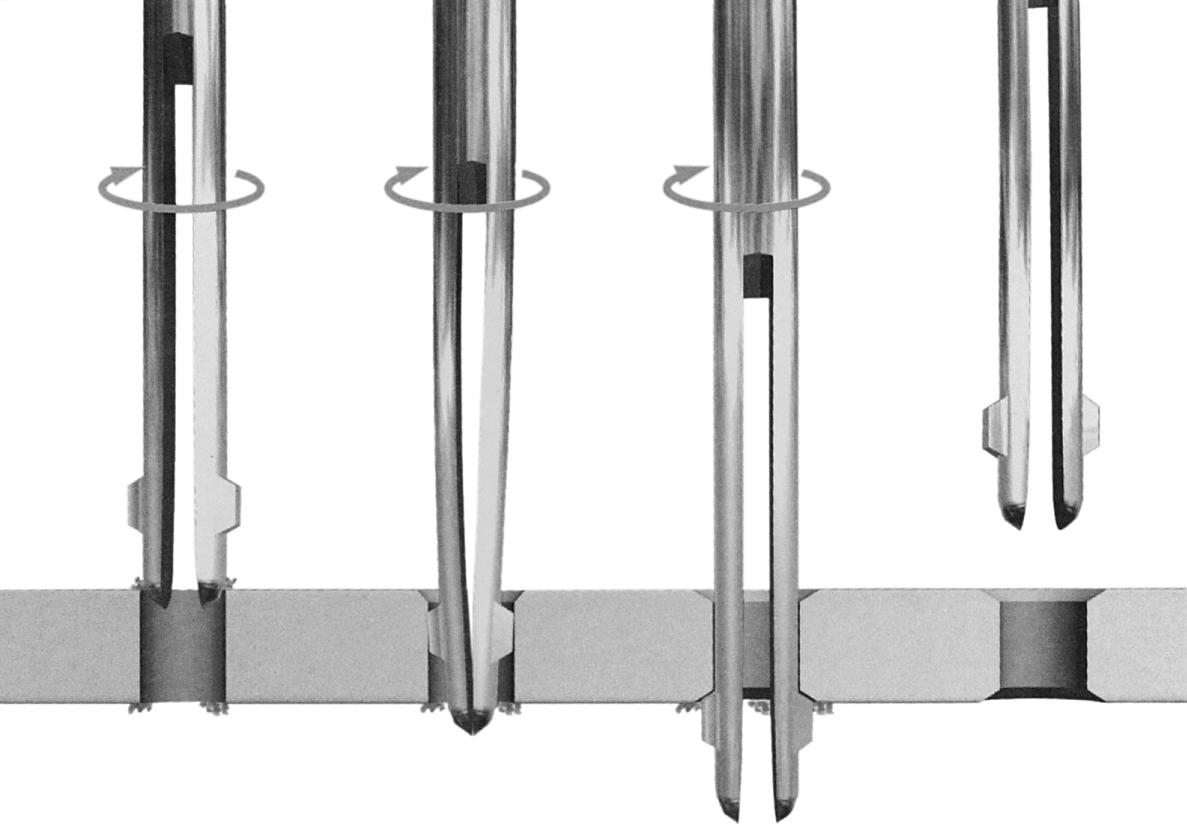

bore-hole deburring on both sides in a single operation

- material: HSS
- no spindle stop required!
- chamfering in inaccessible locations (eg. hollow objects)
- no turning of work piece required
- simple and rugged design
- most suitable for mass production
- one piece construction allows cutting chips to clear easily
- readly adaptable to all kinds of production machines
- forward deburring angle: 45°
- reverse deburring angle: 33°

Related links to "Deburring tool X-Grat Ø 1,3 - 1,4 mm, XG-1,3"

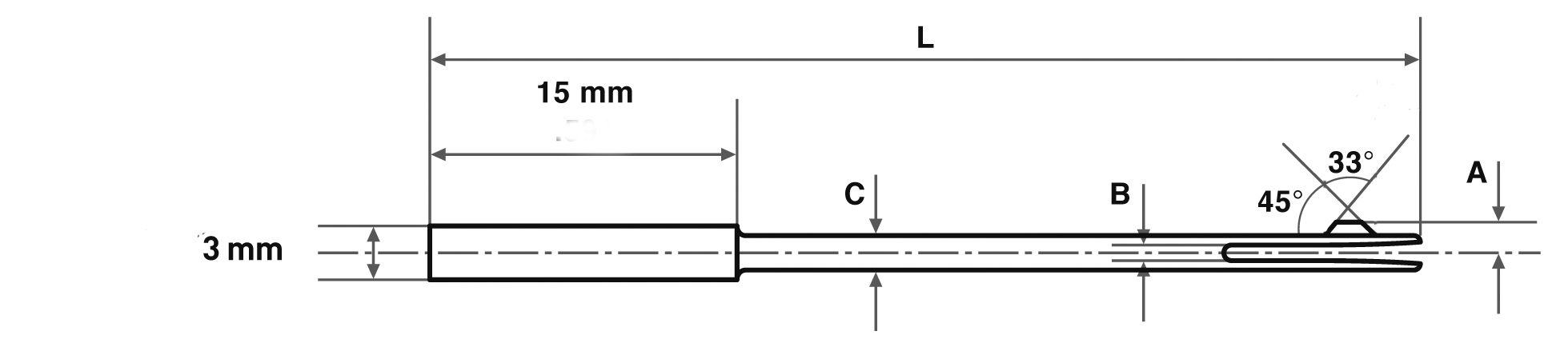

Größenbereich / Range of hole size mm C mm L mm A mm B mm 1,0 - 1,1 0,9... more
Größenbereich /
Range of hole size
mm
C
mm
L
mm
A
mm
B
mm
1,0 - 1,1 0,9 45 0,9 0,3
1,1 - 1,2 1,0 45 1,0 0,3
1,2 - 1,3 1,1 45 1,1 0,3
1,3 - 1,4 1,2 45 1,2 0,3
1,4 - 1,5 1,3 45 1,3 0,3
1,5 - 1,6 1,4 50 1,4 0,5
1,6 - 1,7 1,5 50 1,5 0,5
1,7 - 1,8 1,6 50 1,6 0,5
1,8 - 1,9 1,7 60 1,7 0,5
1,9 - 2,0 1,8 60 1,8 0,5
2,0 - 2,2 1,9 60 1,9 0,5
2,2 - 2,4 2,1 80 2,1 1,0
2,4 - 2,6 2,3 80 2,3 1,0
2,6 - 2,8 2,5 80 2,5 1,0

Andere Abmessungen und TIN-beschichtete Ausführungen auf Anfrage erhältlich /
Other sizes and TIN-coated version available upon request

Angaben ohne Gewähr, technische Änderungen vorbehalten /
Information provided without guarantee, technical changes reserved



Größe /
size
UPM /
RPM
Vorschub /
Feed rate
mm
1,0 - 5,0 1750 0,02 - 0,10
6,0 - 9,0 800 - 1000 0,02 - 0,15
≥ 10 600 - 650 0,05 - 0,20
