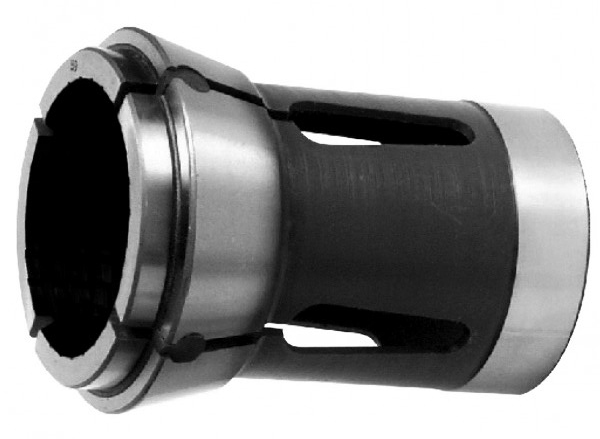

Collet 161E Ø 15,5 mm
Product number:
06-161E-15,5
Customs tariff number
8466 1020
European Article Number
4049794071960
Weight
0,25 kg
Stock:
0
Related links:
Request Item
Product information "Collet 161E Ø 15,5 mm"

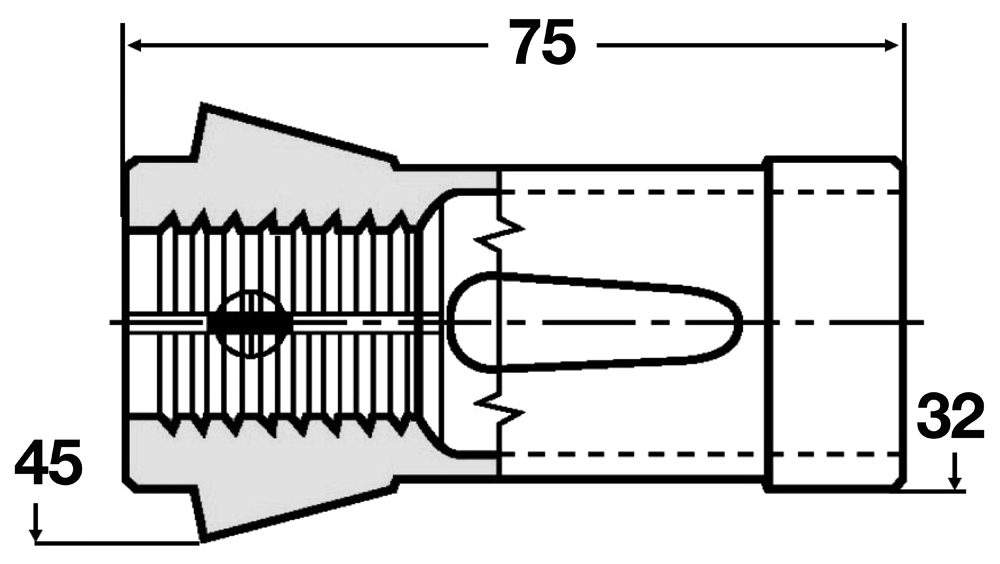

Collet round, DIN 6343, Type 161E
- 0,5 mm stepped
- radial grooved
- Ø 15,5 mm
| Stepping: | 0,5 mm |
|---|---|
| Type: | 161 E |
| Type: | round |
| Ø : | 15,5 mm |
Technical Data
| D mm |
Form / Form |
| 3 - 26 | rund / round |
| Bis einschließlich Ø 8 mm - glatte Bohrung, ab Ø 8,5 mm mit Querrillen / Up to Ø 8 mm - smooth bore, from Ø 8,5 mm - radial grooved |
|
| Angaben ohne Gewähr, technische Änderungen vorbehalten / Information provided without guarantee, technical changes reserved |
|
Product Safety Information:
- Suitable only for technically skilled users familiar with the product and for craftsmen.
- Intended solely for the designated purpose.
- Improper use may lead to damage and injuries.
